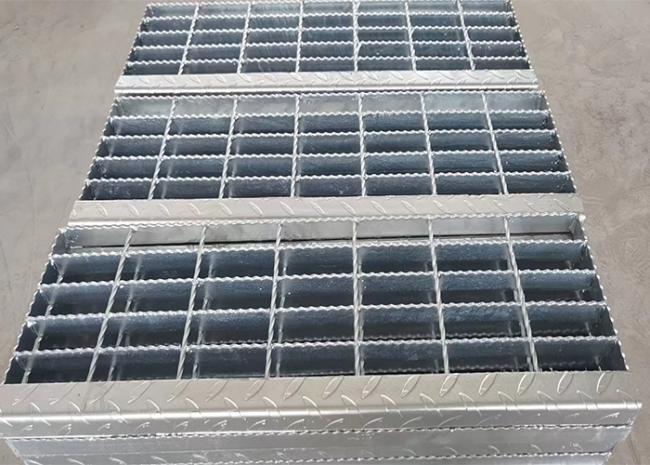

T3 Hot Dipped Galvanized Stair Steps Grating
Our business export more than 10years as a premium manufacturer and supplier of metal flooring and allied products in China. We provides cost effective high quality flooring and safety products solutions, either fabricated to exact project specifications or standard products available immediately.
Custom Steel Stair Tread Manufacturing:
Steel fabricated steel stair treads are manufactured in the full range of products. They are versatile and available constructed in most of the specialty metal and fiberglass grating products we offer. Because safety is paramount, in addition to load-bearing capabilities, open area, and easy maintenance.
Our steel stair treads are the best solution for a huge number of industries, including oil and gas, water parks and refineries.
Bar grating treads
Safety grating treads: 1.diamond treads, 2. heavy-duty diamond, 3.perf treads, 4. tread grip treads
Fiberglass treads
Ladder rungs
| Specifications | |
| 1. Bearing bar |
25x3,25x4,25 x 5,30x3,30x4,30x5,32x5,40x5,50x5,.....75x10mm
|
| 2. Bear Bars pitch (mm) |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40,41,60mm.
US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
|
| 3. Cross bar pitch |
38,50,76,100,101.6mm
|
| 4. Material |
Q235,SS304
|
| 5. Surface treatment |
Black, hot dipped galvanising, paint
|
| 6. Standard |
China: YB/T 4001.1-2007
|
|
USA: ANSI/NAAMM(MBG531-88)
|
|
|
UK: BS4592-1987
|
|
|
Australia: AS1657-1985
|
|

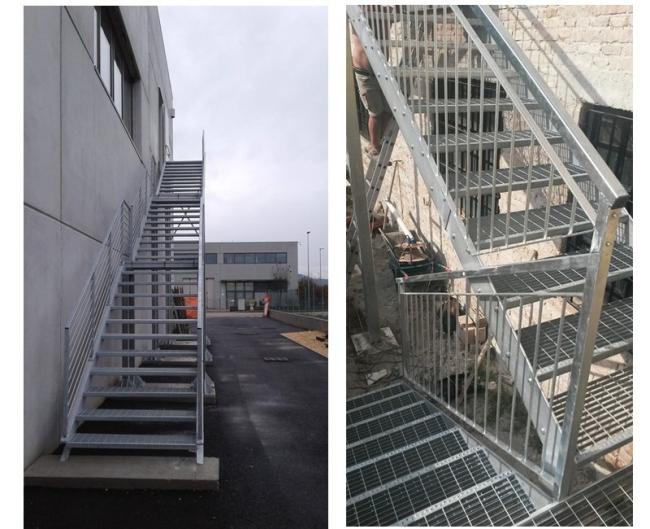

Stair tread steel gratings, also called grating steps, are made of low carbon steel or stainless steel. It is one of the most widely used and popular types of steel gratings. With the features of high strength, high bearing capacity, wear resistance, resistance to extreme temperature wind and rain, non-slip, anti-corrosion, beautiful and easy to install and remove extend the lifespan, stair tread steel grating is widely used as different types of steel ladders in the factory, school, park, stadium, civil and commercial buildings.
