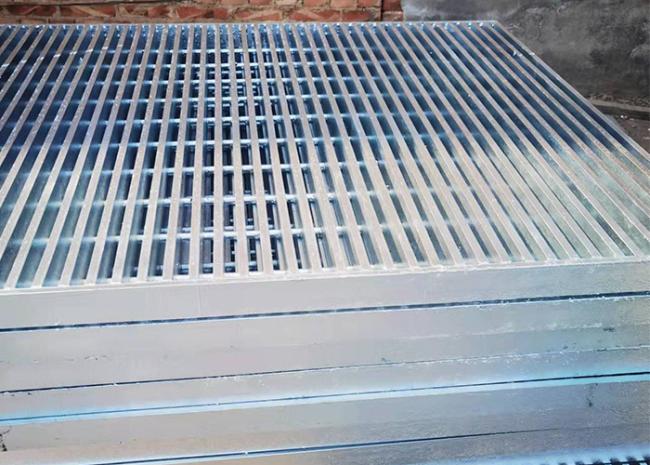

Welded Grating Trench Cover Metal Building Materials Galvanized Heavy Duty
Galvanized heavy duty steel floor grating 50x5mm thickness bar grating cover
Description:
1)Steel grating raw material :Low carbon steel, stainless steel, aluminum alloy
2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
3)Cross bars shape: square bars, twisted square bars,round bars
4) Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,painting or as per customers' requirement.
Reference:
| Material | 1.Carbon Steel Q235 2.Stainless Steel 304 / 316 |
| Type | Press lokced / Flat bar / Serrated bar / I Bar |
| Bearing Bar Size | the specification of "I-section" is 50X5mm up to 100x10mm , |
| Bearing Bar Pitch | 60mm are recommended, America standard is available |
| Cross Bar Pitch | from18.5 to 101.6mm etc, 50, 100mm are recommended, America standard is available |
| Surface Treatment | Untreated / Painting / Hot Dip Galvanizing |
| Steel Standard | China GB700-88 / America ASTM (A36) / Britain ASTM (A36) |
| HDG Standard | China GB/T13912-92 / America ASTM (A123) / Britain BS729 |
| Quality Standard | China YB/T4001-1998 America ANSI/NAAMM (MBG531-88) Britain BS4592-1987 Australia AS1657-1992 |
Details
Heavy Duty: Heavy Duty Carbon Riveted Grating includes bar sizes of 2-1/2” x 3/16” up to 5” x 3/8”. It is primarily used where heavy vehicular traffic is utilized including industrial plants utilizing fork lift trucks, highways, and bridges.
Application
Grating is widely used in steel structure walkway, foot pedal, drain cover, commercial and industrial flooring.
It can take mirror to your floor. This sort of floor appears timeless and classy for you.
