Standard Stainless Steel Floor Grating Drain Plate Cover Trench Cover
Standard stainless steel grating floor drain plate cover Stainless steel trench cover

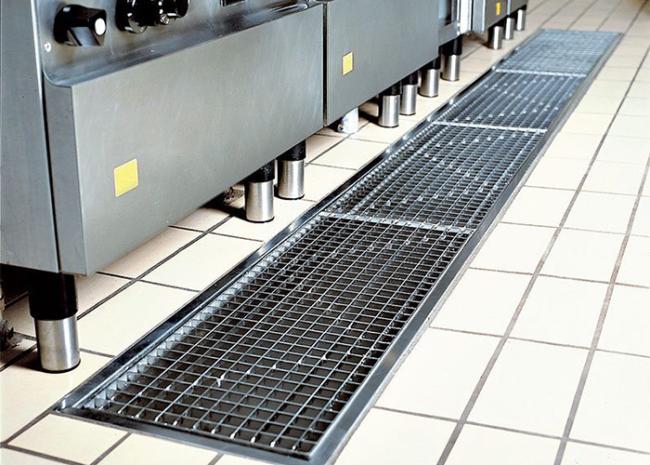

Made of stainless steel AISI 304 (or AISI 316 upon request), thickness of 2 mm. Ideal especially for kitchens, restaurants and food preparation areas in general, or cellars, warehouses, production halls etc.. The cover grating can be standard with a 25x22 mesh, heel-guard 50x11 mesh, heavy bars 25x8 and double slot with surface in 6mm plate. The dimensions can vary depending on the needs of the customer.

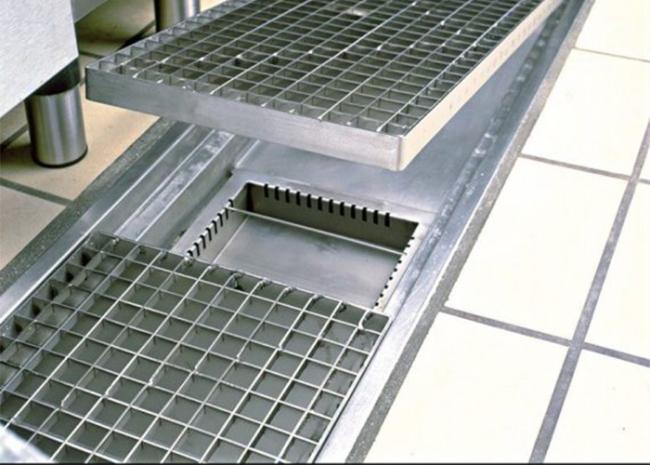

The channel (usually with an overall width of 150 or 200mm at sight, including grating and side edges) is equipped with floor drain (also called gully or sump) with a square plate at sight of 300x300 mm, thickness of 8 mm (planned for an high-traffic use, with suitable increased thickness to avoid accidental banding), with an overall height of 220mm and Ø110mm outlet pipe with a filter basket for waste recovery, considered as insect and rat-proof.
Specifications:
|
Grating thickness and depth
|
30x3mm |
|
Spacing
|
40/50mm |
|
Length and width
|
1000x500mm |
