G505/50/50 Press Locked And Welded Steel Grating Heavy duty Angle steel grating
G505/50/50 Press Locked And Welded Steel Grating Heavy duty Angle steel grating
Description of press lock steel grating:
Steel Grating made by welding with flat steel and cross/round bars with certain distances.
Our Steel Grating enjoy the feature of high strength, light structure, high bearing, convenience for loading and other properties. The hot dipped zinc coating gives the product excellent anti-corrosion.
1. Raw material :Low carbon steel, stainless steel, aluminum alloy
2. Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.
| Material Standard | ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc |
| Bearing Bar (Width x Thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm |
| Surface Treatment | Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement. |
| Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar |
| Packing | 1.Bandage and Paperboard: Generally applies to neat steel plate; 2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; 3. Steel Pallet: Traditional export packing. |
The bar steel grille plate commonly used by twisted steel, twisted steel specifications for 6mm, 8mm, 10mm and so on. The steel grating can be welded into different shapes according to drawings and specifications, in order to apply to different places such as open.
Our tenet is Prestinge First, Quality First,Efficiency First and Service First.
All inquires will be replied within 8 hours
High Quality, Reasonable prices, prompt delivery, perfect after-sales services.
Quality Quarantee:
1. All goods strictly inspected during production.
2. All products must be checked strictly before packing.
3. Every consignment must be re-inspected before shipment.
4. You are more than welcomed to my factory to inspect the goods at any time.
Payment made via TT, LC, Western Union or DP.
Shipment:
1. Small and light and valuable goods will be sent by DHL, TNT, UPS, FED by airplane.
2. Large and heavy goods will be shipped by LCL, FCL or bulk vessel.
Our Mission
To provide the top quality products & best services with global expertise;
To build a harmonious environment for employees growing together with the company;
To contribute to the advancement of both industry & society.
We will try our best to satisfy our customers with top quality, good service and most competitive price.

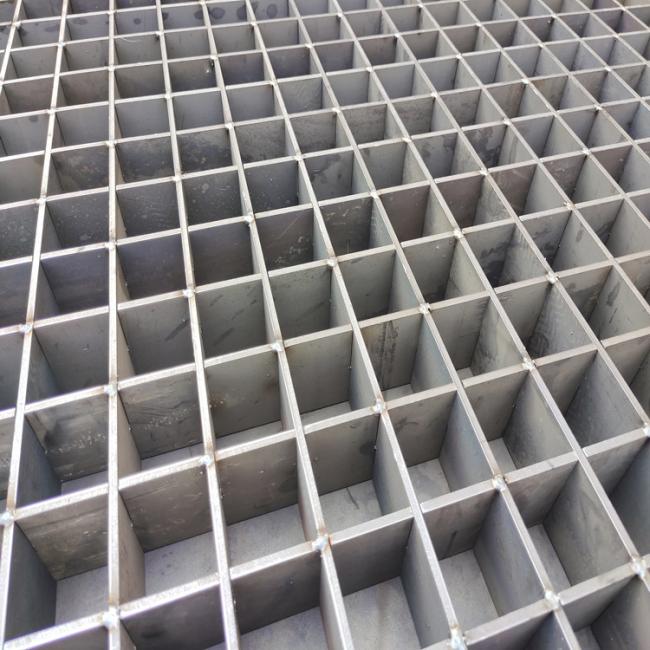

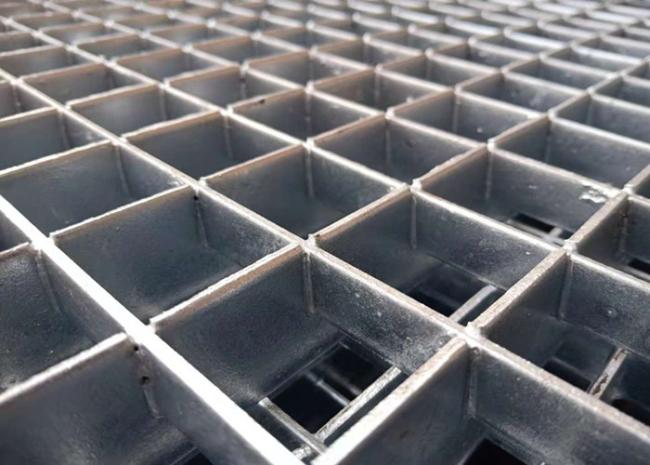

Press Lock Steel Grating picture:
Our Advantages:
1.Steel Grating, including plain and serrated steel grating, size and specification can be produced according to customer's requirements.
2.Stair Tread: There are 8 types of treads distinguished by different nosing & way of installation.
3.Drainage Pit/Trench Cover
4.Railing & Stanchion
Total Staff: About 300, including 50 managers, 10 technical engineers.
Total Area: 25, 000 square meters and with workshop area of 18, 000 square meters.
Main Equipment: 8 press-welding machines
Management System: ISO9001: 2008
Advantage: High quality, Professional engineer, and Large production Capability
