Stainless Floor Drain Trench Grate Walkway Drainage Cover Panel Steel Grating
| Material Standard | ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316, Mild steel & Low carbon steel, etc |
| Bearing Bar (Width x Thickness) |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc |
| Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc. US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm |
| Surface Treatment | Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement. |
| Grating Style | Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar |
| Packing | (1) Bandage and Paperboard: Generally applies to neat steel plate; (2) Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength; (3) Steel Pallet: Traditional export packing. |
Product Feature:
- Save material: the same load conditions under the same material, the corresponding, can reduce the support structure of the material.
- Reduce investment: provincial materials, provincial labor, provincial construction period, free cleaning and maintenance.
- Construction is simple: in the pre-installed support with a bolt clamp fixed, one person can be completed.
- Save time: the product does not require on-site re-processing, installation is very fast.
- Durable: the factory after hot galvanized anti-corrosion treatment, impact resistance and pressure capacity.
- Modern style: beautiful appearance, design specifications, ventilation and light, giving a neat and smooth modern experience.
- Lightweight structure: with less, light structure, and easy to lift.
- Antiplayer dirt: no rain, snow and dust.
- Reduce the wind resistance: due to good ventilation, the case of wind and wind resistance is small, reduce wind damage.
- Simple design: no small support beam, simple structure, simple design, no need to design steel grating detailed, only specify the model can be, the factory can design layout on behalf of customers.
- Acid and alkali corrosion capacity: PH6 to PH12.5 range, the zinc layer to form a stable protective film, good corrosion resistance

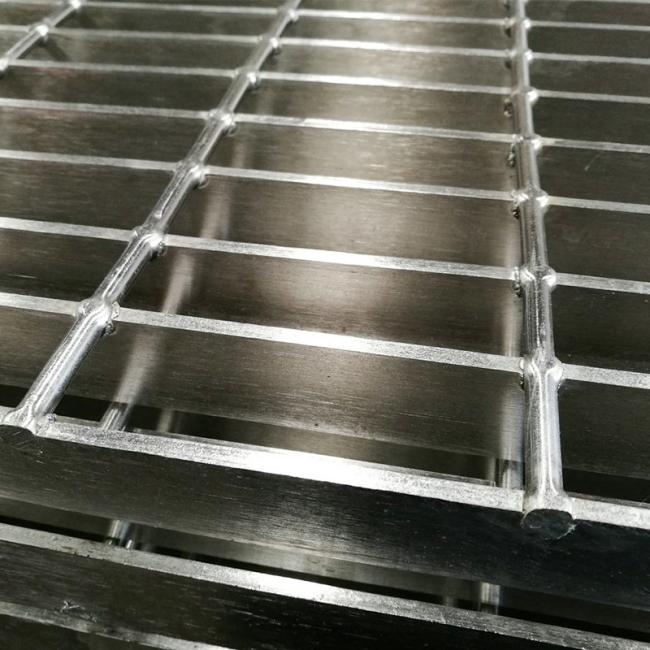

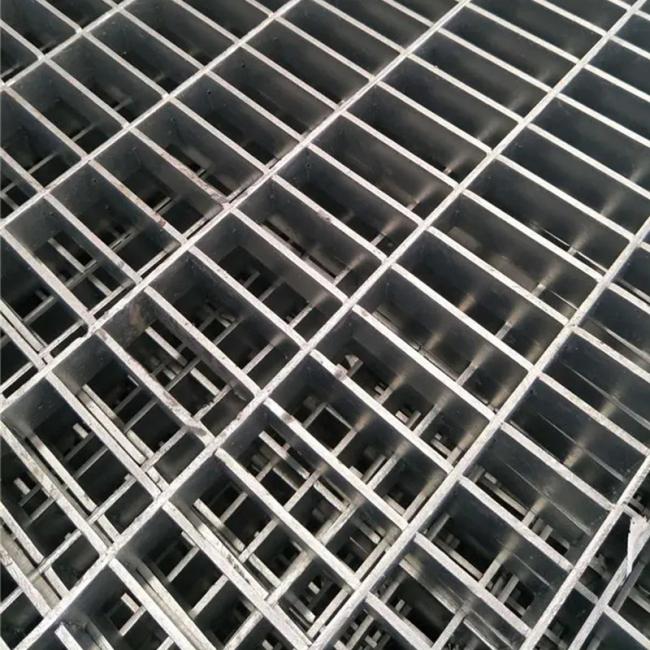

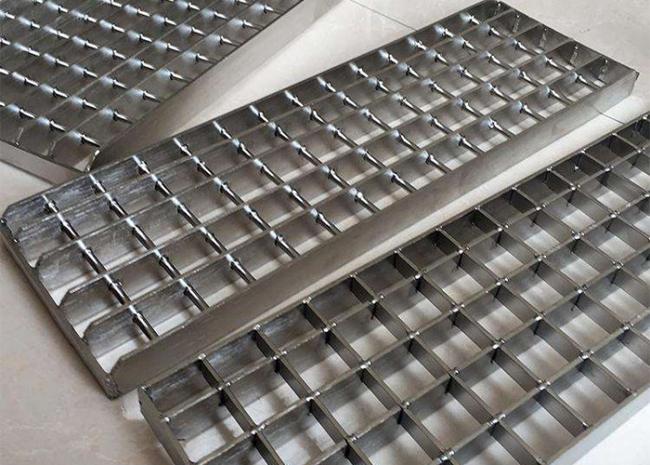

Stainless Steel Grating picture:
Q: Are you trading company or manufacturer ?
A: We are factory.We have more than ten years of production experience.
Q: Are you familiar with the entrance matting market?
A: yes,We development and research this mat with one Amercian Company in 2006,now we have agents and distributors all over the world,like China, New Zealand ,Thailand,DUBAI, U.A.E,Australian,Korea and so on.
Q: Do you have the required certificate?
A:Yes,we have Anti Slip SGS Certicificate,CE (ISO9001)and more than Ten Patents
Q: How to Install?
A:We have professional engineer,when you have project,we will do the project by drawing CAD for you and supply for Installation Instructions.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
