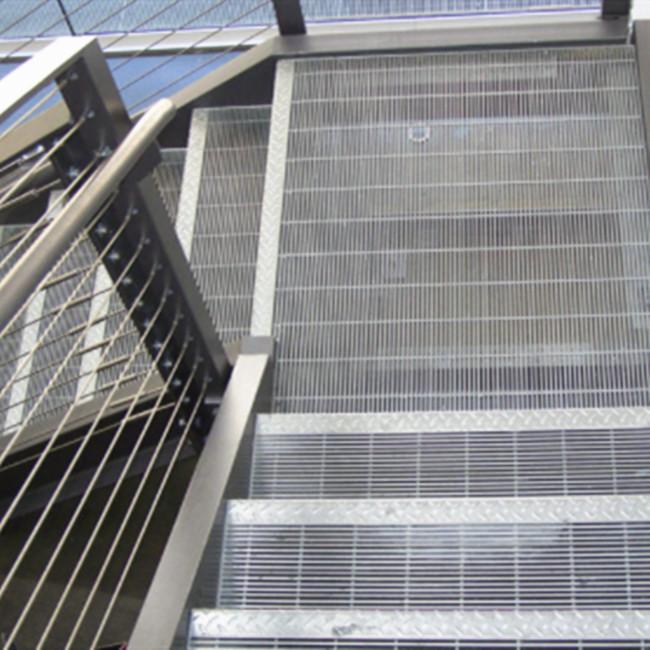

Mild Steel Bar Grating Heavy Duty 75mm X 6mm Metal Drain Grates
Mild Steel Heavy Duty Steel Grating 75mm x 6mm Metal Drain Grates Steel Bar Grating
- A flat bar withstanding the main load is in consistent with the span direction .
bearing bar pitch
- the distance center to center of the two bearing bars.
Cross bar
- the connecting bars , made from twisted bar ,round bar or flat bar, which extend across the bearing bars
Cross bar pitch
- the distance center to center of the two adjacent cross bars.
Length
(span)- the maximum dimension of a grating panel ,measured parallel to the bearing bar ,and in the same direction as the bearing bars .
Width
- the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.
Width
- the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.
|
Type of steel grating
|
W-pressure welded grating; L- pressure locked grating; C- socket welding grating
|
|
Pitch of bearing bars
|
15-30mm, 40mm, 60mm, 80mm, 90mm etc. with 30, 40mm recommended.
|
|
Pitch of cross bars
|
30, 38, 50, 76, 100mm etc. with 50, 100mm recommended.
|
|
Sign of the shape of bearing bar
|
F-plain surface (F is usually can be omitted); S-serrated surface; I-the section is of "I" type.
|
|
Surface treatment
|
G- hot dip galvanizing (G is usually omitted); P-painting; U-untreated.
|
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position
Fence post packing:
<1>plastic cap cover onto the post
<2>plastic film +metal pallet for fence pot
Accessories packing:
<1>stainless steel nuts and screws install with clips
<2>5 sets clips load into one plastic bag
<3>12 bags into one carton box
2. We can customize the product according to your design.
3. We follow the principle – be honest, professional and efficient.
4. Perfect after-sales service.
FAQ
Q1: What is the material of the product?
low carbon steel, galvanized steel, stainless steel, aluminum, etc.
Q2: What about the packing?
Usually belt, pallet, wooden case.
Q3: How much abbot your annual production capacity?
Around 2500tons
Q4: Can i get sample?
Sure, we provide samples.
Q5: Do you offer a warranty on your products?
Yes , we have the strict quality inspection before delivery .
Q6: Do you have any certificate?
Yes,we have ISO9001
Q7: Do you have a separate quality departments?
Yes,we have QC department.Will make sure you receive the perfect product.
Q8: Do you have mutually agreed upon specifications with your suppliers?
Yes,we will make contract specify the specifications with the material suppliers
