Metal Bar Gratings
Metal Bar Grating is the workhorse of the industrial flooring market and has served industry for decades. Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration. The high percentage of open area makes bar grating practically maintenance-free and all products are fully recyclable.
Manufactured by assembling a series of equally spaced metal bars to connecting cross members, bar grating is available in three popular materials; mild carbon steel
Serrated slot grating covers are safe, self-cleaning, skid-resistant and economical.

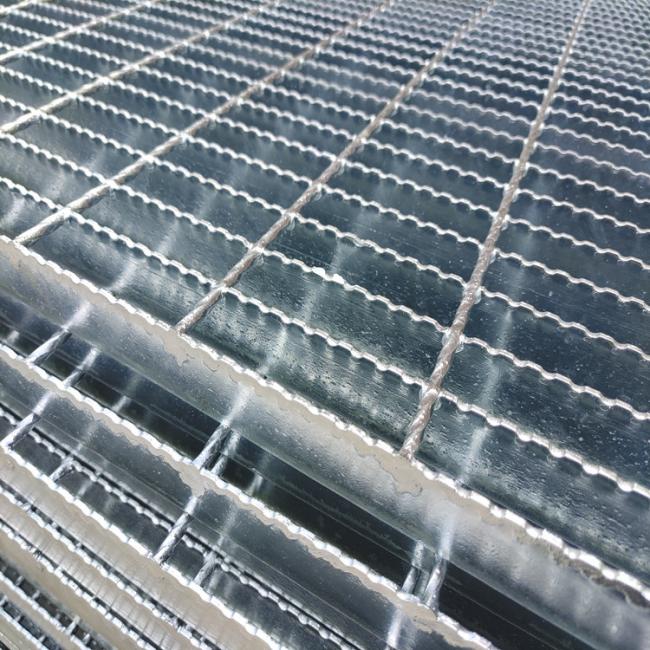

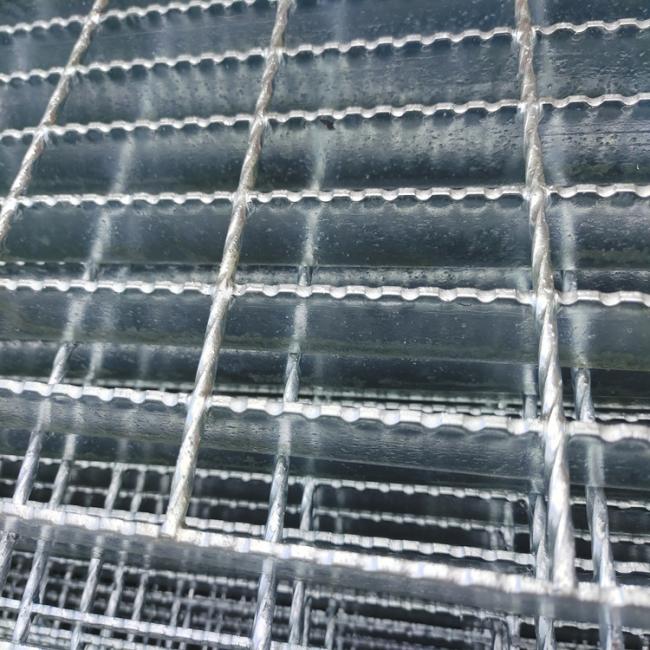

Serrated top surface adds extra skid resistance for special requirements.
Welded steel covering grates are the most widely used for their strength and ease of installation and are universally used in most industrial and commercial applications.
Main Market
85% of galvanized steel grating are exported to the worldwide with perfect quality. There are many regular galvanized steel grating customers in USA Houston, Ohio, Charttle, LA, MiddleEast, AUS, Europe and Southeast so on.
Usage
The pavement grating is widly used on construction project, oil project, seaport, power plant, water plant, defense project, chemical factory and so on.
common size
The sizes 6meter x1 meter ,5.8meter x 1meter are the common size to Aisan and Middle East markers.
The plain galvanized steel grating commonly used on bridge,refinery ,power plant,Sewage treatment plant and so on.
| No. | Item | Description |
| 1 | Bearing Bar |
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc |
| 2 | Bearing Bar Pitch |
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc |
| 4 | Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
| 7 | Standard |
China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987, Australia: AS1657-1985, Japan:JIS |
We are one of industry and trade.
Q2: How can I get a quote?
Contact us with specification, size, quantity and your port, then fast quote with be sent.
Q3:Can the products be customized?
Yes.The company has a professional design team, strict management system, can quickly design according to customers' drawings for
free, and provide professional production plans to ensure the rights and interests of every customer.
Q4:What is your payment method?
30% advance payment.
