Short wave tube for photovoltaic industry

1. Advantages of short wave tube

Short-wave lamps are powerful and penetrating. With its high power, the radiation is focused on the target and provides efficient heat. As the short-wave lamp can reach full operating intensity within seconds, the short-wave radiation heating source is ideal for processes that require quick stop and start. This is why shortwave lamps are also used in a wide range of applications in the photovoltaic industry.

2. How to choose a radiator
It is important to match the wavelength between the heating object and the infrared emitter. By matching the wavelength between the heating object and the emitter, we can achieve heating and drying in a shorter time with less energy. When the infrared radiation is precisely matched to the absorption characteristics of the product, good performance is achieved.

Wavelength absorbed by the substance:

for instence: metal:1-2um

                     resin: 2-4um

                     glass: 2-4um

                     drainage dry: 2-4um

                     ceramics:3-5um

(Please consult us for details!)

3.Application of short wave tube in photovoltaic industry

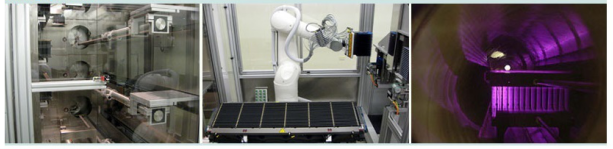

Plasma Enhanced Chemical Vapor Deposition and use of our main products

1) SHIMADZU PECVD

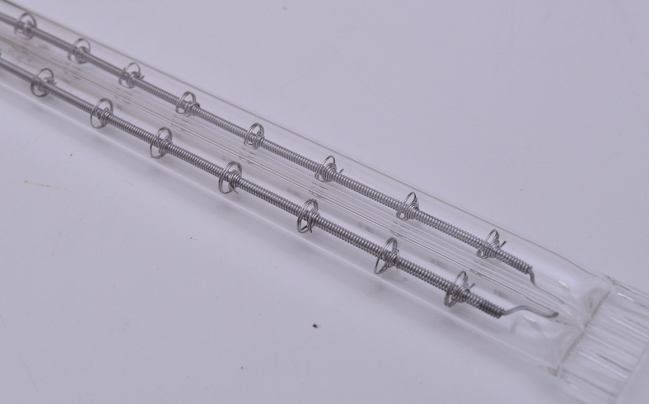

Short wave transparent tube 13*1580mm 220v 3300w

2) Roth&Rau PECVD

A. Short wave transparent tube 23*11*980mm 80v 1670w

B. Short wave White coated tube 23*11*1320mm 380v 2kw

Screen printing nd use of our main products

1) Baccini

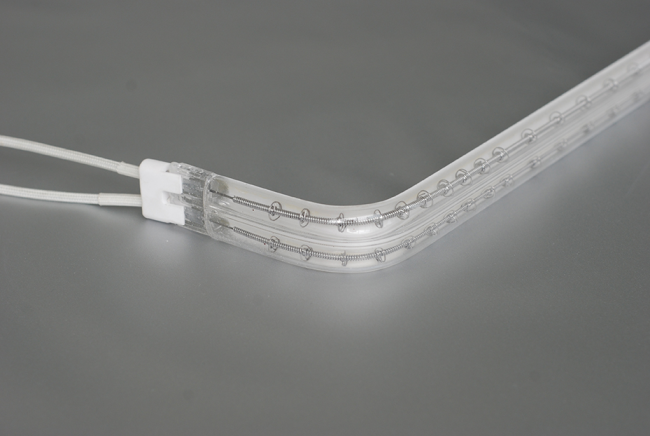

A. L type short wave tube white plated (soft wire) 23*11*1070+90mm 380v/230v 2000w

B. Golden medium wave twin tube(hard wire) 23*11*1100mm 380v 2000w

2) ASYS

Golden short wave twin tube

sintering furnace and use of our main products

1)Despatch

A. short wave single tube 10*535mm 240v 1100w

B. short wave twin tube 23*11*488mm480v 2.8kw

2)Centrotherm

A. short wave single tube 10*800mm 230v 1600w/2700w

B. short wave single tube 13*1050mm 230v 2400w/2700w

3)TPS

short wave single tube10*660mm 225v 2kw

Tabber and Stringer and use of our main products

1)Teamtechnik

short wave single tube(Bump type) 10*280mm 230v 1250w

2)Autowell

golden short wave single tube

ruby lamp with gold coating

3).Mondragaon

white coating short wave tube

P

4.Why choose us

1. The materials used for our lamps are at good quality approval UL testing

2. As a manufacturer of infrared lamps over 10 years history, and we have experienced workers, half of them have worked for us over 5 years

3. We are factory, so we can control the delivery date, material, quality directly

4. For any exclusive-human damage within warranty time, we will delivery the replacements within 3-5 work days once confirming

5. Safe package to protect lamps from being broken during shipping

6. we will provide you the lamp’s holder free of charge ( 2 units clamps for 1 piece lamp)

7. Various Payment methods like wire transfer, paypal, western union

8. Shipping ways provided including DHL, Fedex, TNT, UPS, air, sea

5. Service

Our Infrared heater lamps are under standard in CE & ROHS, we have strict quality control to make sure each IR lamp is perfect!

Sample Service

Some samples are free of charge, buyer shoulder the fright cost.

Customized Service

1. All of our infrared heater lamps are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize 1pc IR lamp for your quality testing at the beginning.

2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.

After-sale Service

Warranty Time of Short wave Infrared heat lamp: 5,000 hours

Warranty Time of Carbon Fiber Infrared heat lamp: 10,000 hours

Warranty Time of Medium wave Infrared heat lamp: 20,000 hours

During the warranty time, any non-man-made quality issue, once confirmed, we will sent the new replacement immediately without any charge.

FAQ

1. What is the payment term?

prepayment 100% advance via wire transfer, Paypal, Western Union

2. Could you provide sample for performance testing and appearance checking?

Yes, we can provide the sample based on your required specs.

3. What information should i provide when enquire?

Lamp’s type, Total length,Heating length ,Wattage,Voltage,Ceramic end connection ,Lead length in mm (Standard lead wire length 300 mm),Coating available - Gold coating / Ceramic coating, quantity, it couldn’t be better if there is drawing or picture can be provided.

But if it is a new project or it is the first time for you to use infrared emitter, just tell us about your application in details like object material, required working temperature, required time, heating size..

NOTE: customized lamps available on request.
