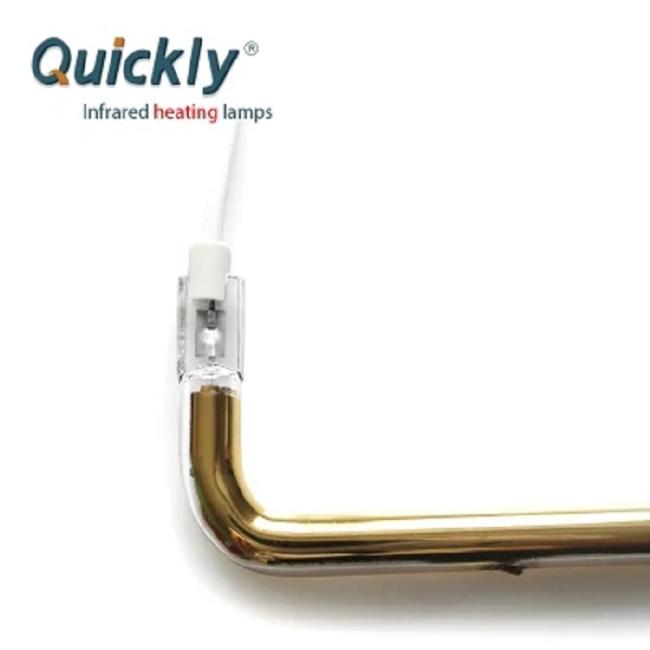

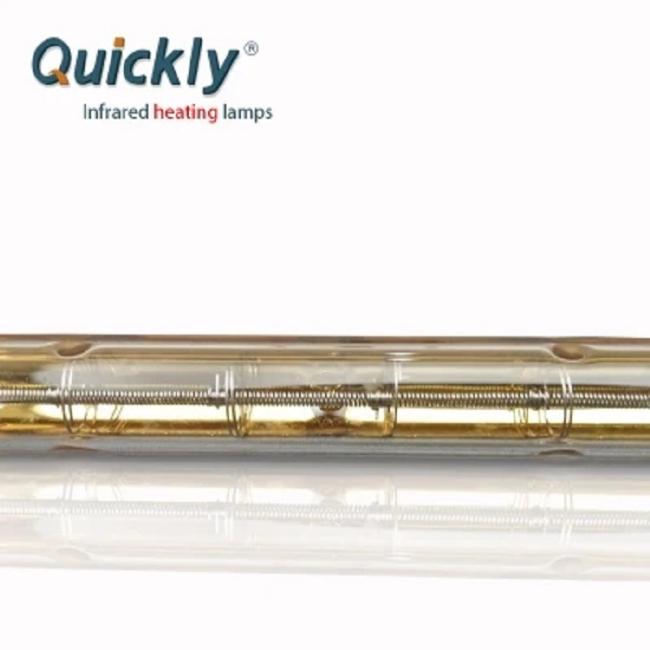

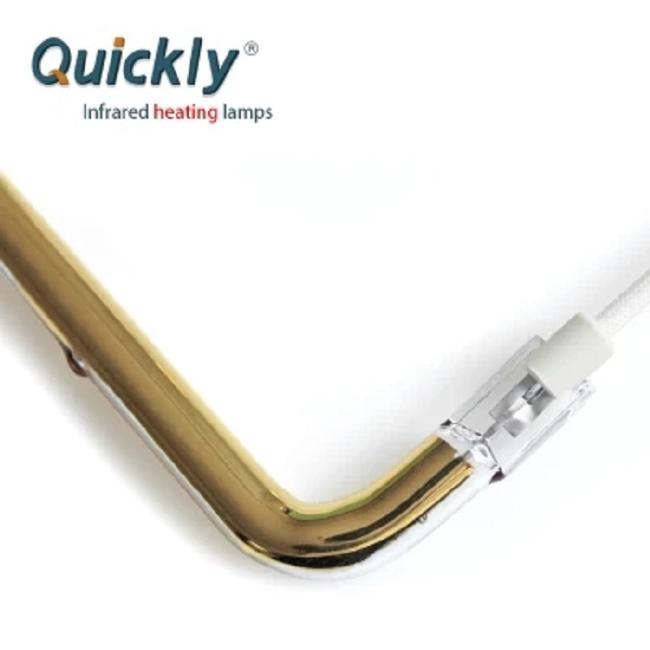

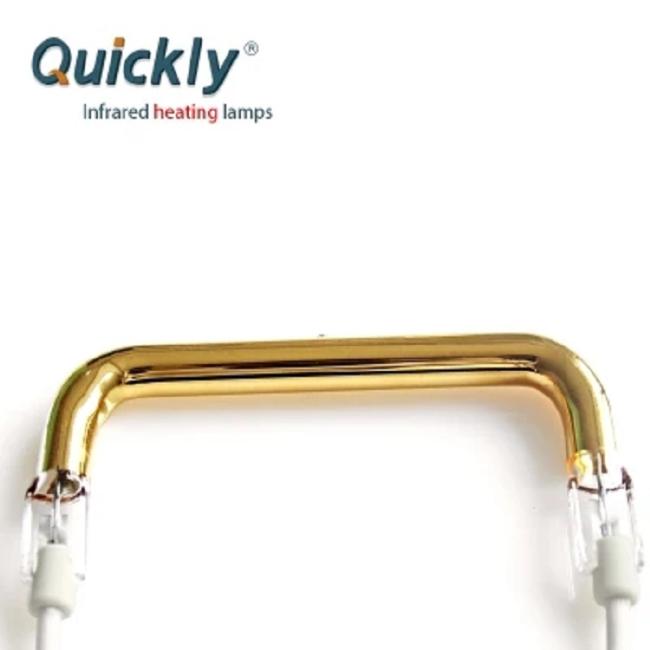

U Shaped Single Tube Short Wave Infrared Heater With Golden Reflector
U Shaped Single Tube Short Wave Infrared Heater Lamps Supplier
No.1 Product Descriptions
Why choose an infrared heat lamp?
Quartz glass infrared emitters frequently prove superior to conventional heating sources such as warm air, steam, ceramic, gas, or metal emitters, because they transfer large amounts of energy very quickly and can be precisely matched to the product and the manufacturing step -the ideal heating process.
-Fast response times allow controllable heat
-Quartz glass infrared emitters are precisely matched to the materials to be heated
-Infrared radiation requires neither contact nor intermediate transfer medium
-Heat is applied precisely where and only for so long as it is required
Compared for example to warm air heating, this often means less energy consumption, higher line speed, a smaller footprint, and better result.
Parameters of Carbon fiber IR Emitters
| Diameter | 12*11mm |
| Wavelength | 1.4-2.5um |
| Total length | 500mm |
| Heated length | 400mm |
| Wattage | 1000w |
| Voltage | 500v |
| Tube thickness | 2.0mm |
| Lead wires length | One side lead wire 500mm(standard length) |
Benefits of Coating
1. For the emitters with high watt density or the surface temperature of the tube above 800°C, we suggest using ceramic coating as a reflector because the temperature resistance is up to 1000°C.
2. The emitters with coating are highly economical, converting practically all the consumed
electrical power into heat.
3. All of our emitters can be coated with a layer of gold or ceramic as reflectors. The gold/ ceramic coating can concentrate the heat, increasing the effectiveness of the heat output.
In addition to 180°(half-tube) coating, we also manufacture 270° coating or other customer-specified degrees.
Forms of expression of Coating
No.2 Specific Applications Examples
No.3 Quality Service
Our Infrared heater lamps are under standard in CE & ROHS, we have strict quality control to make sure each IR lamp is perfect!
Sample Service
Some samples are free of charge, buyer shoulder the fright cost.
Customized Service
1. All of our infrared heater lamps are customized according to your unique practical request, professional technicians do one-to-one service for you and can customize a 1pc IR lamp for your quality testing at the beginning.
2. We offer OEM services, we can print your logo on Infrared heating lamps as your requirements.
After-sale Service
Warranty Time of Short wave Infrared heat lamp: 5,000 hours
Warranty Time of Carbon Fiber Infrared heat lamp: 10,000 hours
Warranty Time of Medium wave Infrared heat lamp: 20,000 hours
During the warranty time, any non-man-made quality issue, once confirmed, we will send the new replacement immediately without any charge.
