SWT36300HC Automatic Cable Tie System For Big Wire Cable Dia 70mm
SWT36300HC Automatic cable tie system for big wire cable dia 70mm

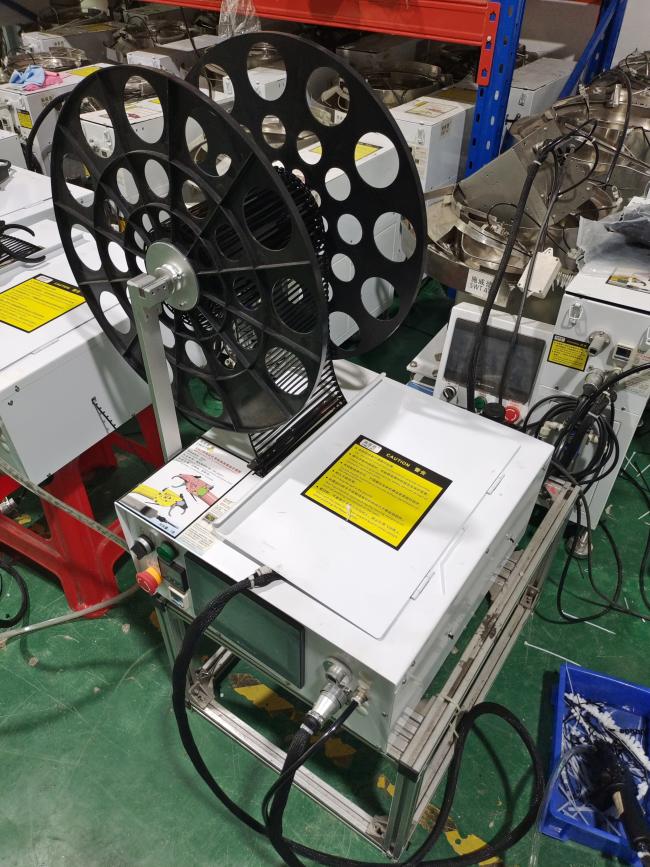

Automatic cable tie system SWT36300HC consists of a handheld tie gun and a host machine. This cable tie machine is new automatic cable tie machine to meet some bigger wire cable/tubes bundling.
Performance characteristics of zip tie cutter tool
1. The touch screen displays in full Chinese (or English), and the text language can be set according to the customer's needs. It can be set the language as you require.
2. The cable tie gun(Handheld type) of automatic zip tie machine is assembled and debugged by technicians with many years of experience. This cable tie tool head has a very stable performance and a long service life.
3. Adopt imported brand PLC control, provide stable working procedures, imported drivers, high degree of automation.
4. The cable tie gun has the advantages of sensitive action, fast binding speed, adjustable binding force and stable performance.
5. Use the automatic cable tie machine for automatic cable tie binding, reduce the work intensity of workers/reduce the operation steps of workers.
6. Our clients speak highly of our automatic cable tie machines.
Technical parameters of cable tie machine
|
Model |
SWT36300HC |
Power supply | 220V, 50Hz/60Hz |
| Bundled speed |
1.3S |
Pneumatic pressure |
5kg/cm2 |
| Bundled item size |
2-70mm |
Power |
1KW |
| Host machine size |
L71*W54*H74cm |
Cable tie gun size |
L30*W24*T15cm |
| Host machine kg | 30kg | Cable tie gun weight |
4.2kg
|
The cable tie tightening tool is suitable for binding BIIG wire cable/copper tube/bags
Delivery display of cable tie machine
When the cable tie machine is shipped, we will use stretch film and pearl cotton to wrap it around for protection and then build a wooden frame to avoid problems during transportation and damage the interests of customers.
RFQ's can be emailed to Amy, sales@sz-swift.com
Include the following documentation:
| 1 | The video/picture about how you use nylon cable tie to bundle the products |
| 2 | The size of nylon cable ties you are using. |
| 3 | The picture of product that you use nylon cable tie to bundle. |
| 4 |
The bundle diameter of product. |
Clients can chose automatic cable tie machines based on these details or inform us then, we could suggest one auto cable tie machine for you.
FAQ
1. Do you have CE?
Yes, all automatic cable tie packing machines has CE certificate.
2. Different cable ties can be used in automatic cable tie bundle machine?
No, different cable ties can be used in different auto cable tie machines.
And automatic cable tie guns ask for good quality nylon cable ties.
- How long is it for the warranty?
1 year and tech support all life.
4. Can SWT36300HC use other factories cable ties?
No, it can not. Automatic cable tie system SWT36300HC ONLY uses reel cable ties called C36300. And cable ties C36300 is made by our factory.
