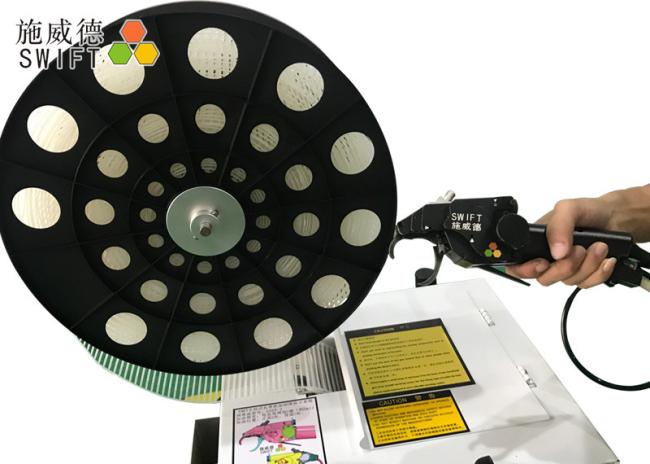

SWT36200HC Automatic Wire Tie Tool 3.6mm*200mm Strip Cable Ties Size
SWT36200HC Automatic Wire Tie Tool For Banding Cable Wire Max Dia. 42mm
The wire tie tool is used to bundle all kinds of wires, plastic tube and others. It can automatically wrap, cut off cable tie and collect the waste. It achieves the environmental protection and saves more time.
SWT36200HC Specifications
| Model | SWT36200HC |
| Cable tie spec | 36 * 200 mm |
| Application | automatically bundle cable ties |
| Min banding Dia. | ￠20 mm |
| Max banding dia. for wire | ￠42 mm |
| Max banding dia. for tube | ￠40 mm |
| Operation speed | 1.3S/pcs |
| Electrical power | the host : AC 220V 50/60 Hz ; |
| Electrical power | the tool head : DC 24V ( auto switch ) |
| Pneumatic pressure | 5 Kg / cm² |
| The host size | L271 * W125 * H74mm |
| Certificate | CE and RoHS |
| Warranty | 12mothes and tech support forever |
Features :
1 . Use strip type cable ties, compressed air push the cable tie to the Tool via hose.
2 . Pulling the trigger, automatically Wrapping, Perforating, Pulling & Tightening, Cut off, Collecting the waste material into waste tank.
3 . The whole operation takes only 1.3s, one machine can save 7-8 operators. That depends on the actual use situation.
4 . Automatically cope with different object diameter. The max Dia. is 42mm for wire.
5 . Bending force is adjustable.
6 . Time is adjustable.
7 . The machine is handheld type. If add extra an alloy support, it can be used as the desktop type.
Package
1pcs/wooden case
Application
Cable banding ;
Goods fixing and packing ;
Gas and liquid pipes fixing ;
The sealing of food packing in bags.
