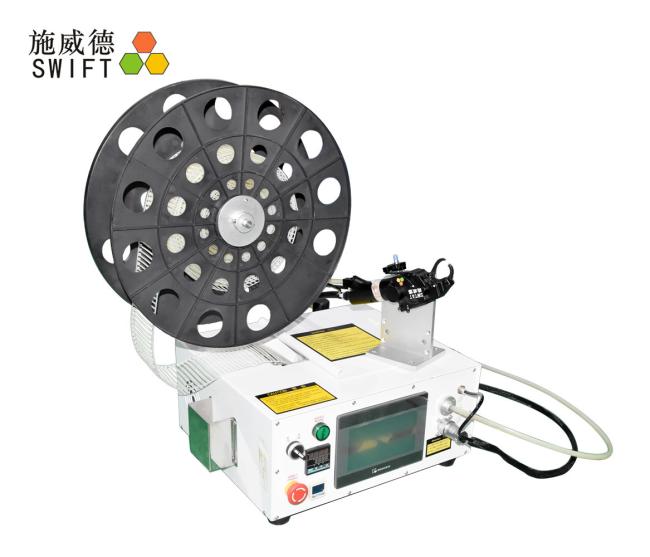

Small Easy Moving Automatic Cable Tie Tool Low Noise For Reel Cable Tie
Small Handheld Reel Cable Tie Tool Fixing Wiring Harness Using 1.3S
No vibration feeding. The machine is smaller and the noise is lower. Two use methods, handheld using or fixed on the desk by added a support.
SWT36200HC features
1 . The machine consists of the host machine, the gun tool and the reel cable ties.
2 . Touch screen from Velenton Taiwang. Easily operate.
3 . It will stop working once finishing the actual output( the qty of cable tie that you set.).
4 . Automatically adjust and bind the object but be sure that the dia. is less than the max dia.
5. The gun head weight is light and confortable to hold for workers.
6. It will detect and deal with it automatically if the cable tie binding fails.
SWT36200HC specifications
| SWT36200HC | ||||||
| Size Of cable size | W3.6 * L200mm | Voltage | AC220V,50/60Hz | |||
| Operation speed | 1.3S/cable tie | The gun V. | DC24V(auto switch) | |||
| Max banding Dia. for wire | Ø42mm | Power | 1000W | |||
| Max banding Dia. for tube | Ø40mm | Pneumatic pressure | 5kg/cm² | |||
| Min banding Dia. | Ø20mm | Certificate | CE, RoHS | |||
| The bending force | Adjustable | Application | binding wiring harness | |||
| Host size | L710 * W470 * H230mm | The host weight | 30kg | |||
| Gun size | L274 * W73 * H74mm | The gun weight | 0.91kg | |||
| Other models | ||||||
| Model | SWT25100HC | SWT36150HC | SWT36150FC(Fixed type) | |||
| Operation speed | 1.0S/cable tie | 1.2S/cable tie | 1.2S/cable tie | |||
| Max banding Dia. for wire | Ø18mm | ø31mm | ø31mm | |||
| Max banding Dia. for tube | Ø16mm | ø30mm | ø30mm | |||
| Min banding Dia. | Ø3mm | Ø3mm | ø3mm | |||
| The bending force | Adjustable | |||||
| The tensile strength of SWIFT cable ties | 8kg | 8kg | 14kg | |||
| Voltage | The host: AC220V,50/60Hz; the gun: DC24V(auto switch) | |||||
SWIFT service
We are a manufacturer and can offer you the competitive price and the best machine.
We have at least 16 years history in automation industry. We have a professional team to help you purchase the high quality machine.
We provide 1 year warranty and the operation videos.
Out off warranty, if any problems, pls free to contact us and we will deal with it and give you suggestion.
FAQ
1 .How can I know the machine is what I want?
SWIFT has different kinds of cable tie tool, such as the handheld type, the fixed type, professional using in motor coil and the desktop type. Pls contact us, I will give you suggestions.
2 . How can I place the order?
Confirm cable tie size and the bound goods - confirm the using way, handheld or fixed type - Confirm more details you ask - Offer the quotation - 100% TT payment before shipment - Make the machine within 15 days - inform you the situation and send it to you - Finish the order
HK fair
Full automatic cable tie tool with a robot
