Automatic Wire Tie Tool Easy Operated With Small Handheld Gun CE Certificated
Smallest Handheld Cable Tie Gun Wire Tie Tool For Assembly Operate
The equipment uses cable ties W2.5mm * L80mm to bundle different wirings or hosepipe. It has the smallest handheld gun, 0.001m³.
SWT25080H advantages
1. Use bulk cable ties to bundle wires or other products.
2. With the smallest cable tie gun, 0.001m³.
3. The cable tie gun can automatically wrap, tighten and cut off cable ties.
4. It has the fastest bundling speed is 0.6S. That means you spend 0.6S threading, tightening and cutting off cable tie.
5. It is suitable for assembly line operation.
6. 5 binding forces can be adjusted. The min one is 2kg.
7. With big touch screen, Chinese and English display. It is easy to manage and set parameters.
SWT25080H base data
| Product name | Automatic cable tie tool |
| Model | SWT25080H |
| CE compliant | Yes |
| Tool head | Automatic wrap, tighten and cut off |
| Operation speed | 0.6S |
| Host machine | Sort bulk cable ties and feed them into tool head |
| Compatible Cable Tie | T25080 |
| Cable tie width | 2.5mm |
| Cable tie length | 80mm |
| Cable tie thickness | 1.1mm |
| Cable tie tensile strength | 8kg |
| Bundle ø Max | 10mm for wires; 8mm for tube |
| Bundle ø Min | 2mm |
| Pneumatic pressure | 5kg/cm² |
| Power supply | AC220 - 240V, 50/60Hz |

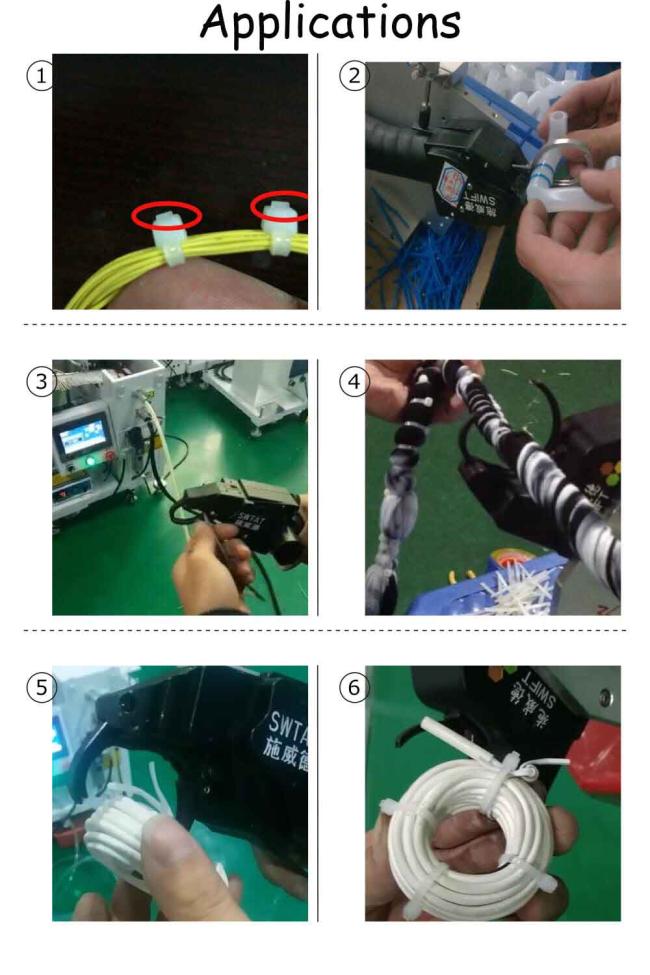

Applications
Cable bending, especially be suitable for the application of onsite assembly for plane, car, train and home appliances.
Packing details
| Item | The host machine | The vibration bowl | Total |
| L * W * H/wooden case | L74 * W68 * H83cm | L65 * W53* H90cm | 0.73CBM |
| G.W./kg | 94kg | 64kg | 158kg |
Trade terms
| Item | Description |
| Payment | 100% TT payment before shipment |
| Lead time | 10 – 15working days |
| Shipment | By sea, by air. |
| Sea port | Shenzhen, Shanghai |
| Price | EXW, FOB Shenzhen or others |
FAQ
1. What is your MOQ?
MOQ: 1pcs.
2. Are you a factory?
Yes, we are. We dedicate to automatic cable tie tool since 2012. We are the most professional manufacturer of this machine in China. We have at least 30+ patents on it.
3. What is the warranty?
Warranty: 1year and tech support forever.
4. What I should do if the machine gets wrong?
Pls don't worry. Pls watch the touch screen and you would find some words that show what cause the machine gets wrong. Pls take some pictures and videos to our sales team. We would give you professional suggestions and guide.
Related products
| SWIFT auto cable tie tool- handheld cable tie gun | |||||||
| Model | SWT25080H | SWT25100H | SWT25120H | SWT36100H | SWT36120H | SWT36140H | SWT36150H |
| Cable ties(L* W)/mm | 80 * 2.5 | 100 * 2.5 | 120 * 2.5 | 100 * 3.6 | 120 * 3.6 | 140 * 3.6 | 150 * 3.6 |
| Binding Max Dia. | 10mm | 18mm | 22mm | 18mm | 23mm | 27mm | 31mm |
| Binding Min Dia. | 2mm | 3mm | |||||
