JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
Price:
Negotiable
MOQ:
1
Delivery Time:
3-5 working days
Brand:
JUYI
Product Description
JUYI original 60V 50A Dual N Channel Enhancement Mode Power MOSFET JY2605M for Motor Driver Solutions
GENERAL DESCRIPTION
The product utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with low gate charge. These features combine to make this design an extremely efficient and reliable device for use in power switching application and a wide variety of other applications.
FEATURES
- 60V/50A, RDS(ON) =14mΩ@VGS=10V(typical)
- Fast switching and reverse body recovery
- Fully characterized avalanche voltage and current
- Excellent package for good heat dissipation
APPLICATIONS
- Power Switching application
- Synchronous rectification
- Motor drive for 12V-24V Systems
PIN DESCRIPTION

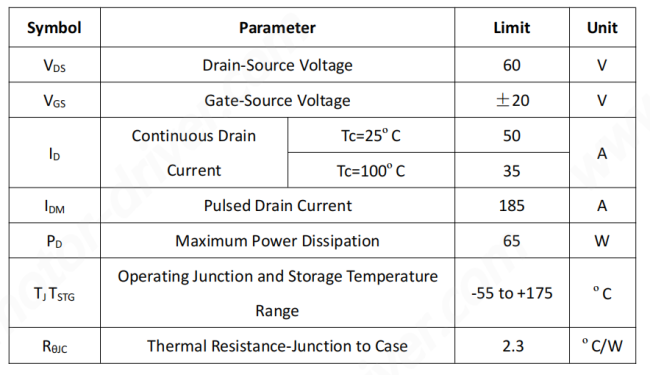

Absolute Maximum Ratings(Tc=25ºC Unless Otherwise Noted)

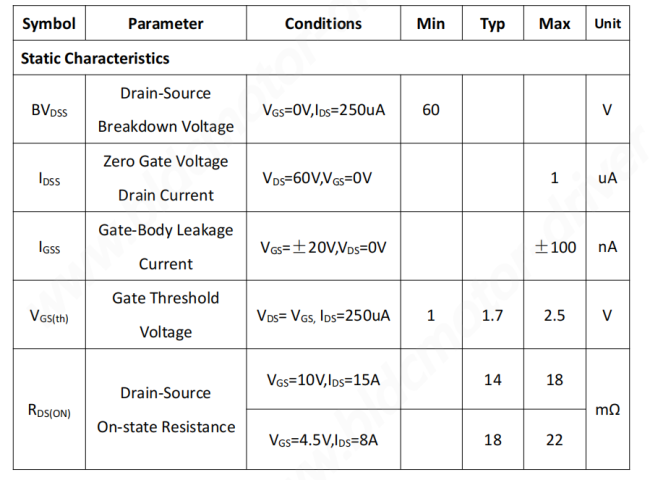

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)

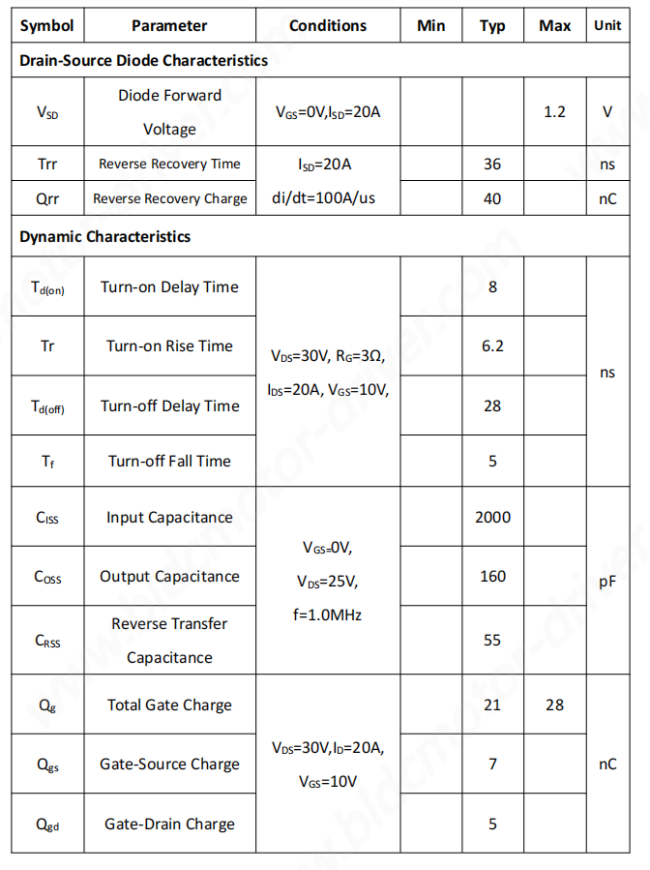

Electrical Characteristics(Ta=25ºC Unless Otherwise Noted)

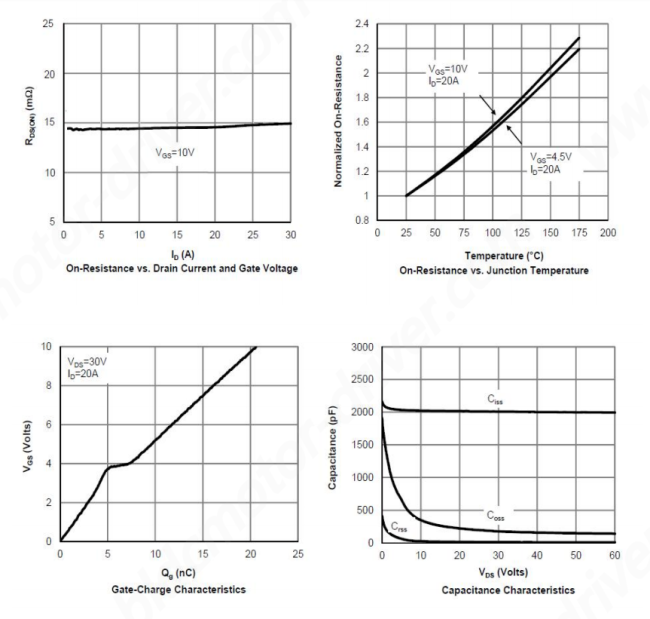

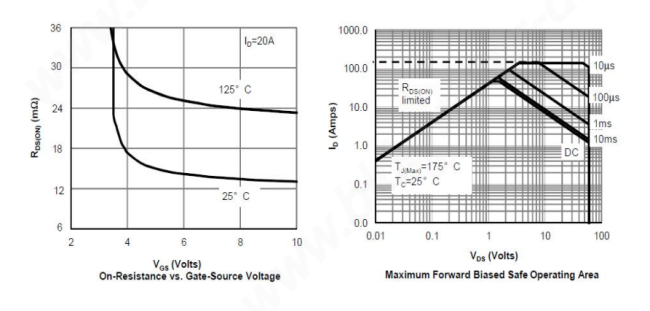

Typical electrical and thermal characteristics

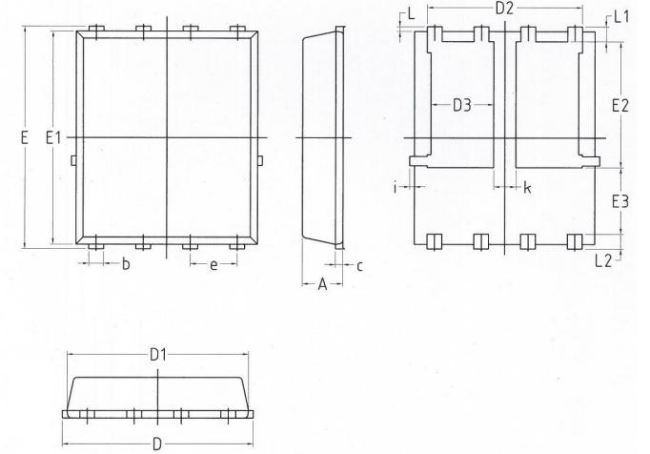

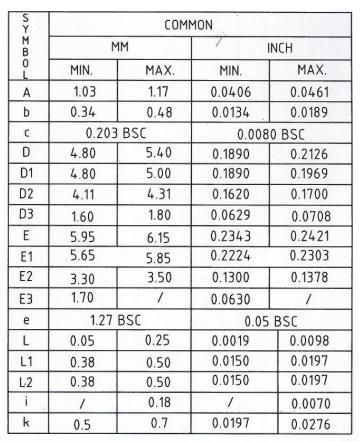

DFN5*6 Package Outline
