3/5/7 Ply Corrugated Cardboard Box Production Line For Cardboard Making
1. The 3,5 ply high speed corrugated cardboard production line, packing machine

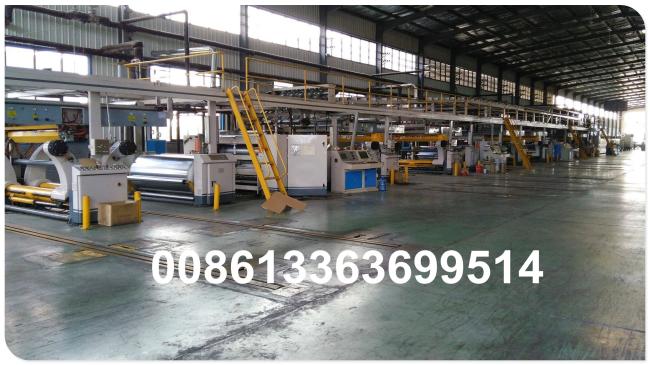

Corrugated Cardboard Production Line
Corrugated Cardboard Production Line is the professtional equipment for producing corrugated cardboard. The 3ply and multi-function corrugated cardboard production line mainly consist of the following equipment : Mill Roll Stand, Surface paper
(core-paper)Preheater, Single Facer, Conveying Span Bridge, Glue Application Machine, Double Facer, Corrugated belt, Slitter Scorer, Cut-off, Conveyer and Stacker, Heating System, Air compression system and Glue Making System and etc. The 3ply and multi-function corrugated cardboard production line has high, middle and low grade with different-specification
and different-quality equipment .On the base of understanding the requirements of the customers and the advanced skills at home and abroad ,our company has developed and designed these production lines with the speed 60 -220 m/min;the paper width 1600-2500mm and four fluting and four fluting UV type A,B,C,E for all the customers to choose from.
2. Equipments List
| Equipments Name |
YK-100-1800 Economic |
YK-150-1800 Middle-speed |
YK-200-1800 High-speed |
| Mechanical Roll Stand (include the paper roll rail) | 3unit | 5units | |
| Hydraulic Roll Stand (include the paper roll rail) | 5units | ||
| Pre-heater 600mm | 4units | ||
| Pre-heater900mm | 4units | ||
| Pre-heater1000mm | 4units | ||
| Vacuum Single Facer (Roll280) | 2units | ||
| Vacuum Single Facer (Roll320) | 2units | ||
| Vacuum Single Facer (Roll360) | 2units | ||
|
Transport Bridge (Electrical adjust the precision, vacuum tighten and loosen.) |
1set | ||
|
Heavy model transport bridge (Electrical adjust the precision,vacuum tighten and loosen.) |
1set | 1set | |
| Triple preheater 600mm | 1units | ||
| Triple preheater 900mm | 1units | ||
| Triple preheater 1000mm | 1units | ||
| Double Gluer - B | 1units | 1units | |
| Heavy model double gluer -C | 1units | ||
|
Double baker (600mm X14heat plates, 6meter cooling part.) |
1units | ||
|
Double baker (600mm X15heat plates, 7meter cooling part.) |
1units | ||
|
Double baker (600mm X18heat plates, 9meter cooling part.) |
1units | ||
|
High-Speed Thin Blade(Electrical up and down, electrical adjust the precision.) |
1units | 1units | |
| NC Thin Blade (Computer control) | 1units | ||
| NC Cutter (Servo, straight knife.) | 1units | 1units | |
| NC Cutter (Servo, spiral knife.) | 1units | ||
| Paperboard Conveyor (right-angle shape) | 1units | ||
| Stacker | 1units | 1units | |
| Glue System | 1set | 1set | |
| Steam System (Not include boiler and pipes) | 1set | 1set | 1set |
3. Machines in Paperboard Production Line
