Woven Corrugator Belt For Corrugated Cardboard Production Line
Woven Corrugator Belt For Corrugated Cardboard Production Line
1. Features
● 5-layer woven fabric
● Composition of cotton, synthetic and IFDY
● High moisture absorption and release; Low noise and high speed
● Woven structure, anti-skidding
2. Introduction
Corrugator belt also named Corrugated board conveyor belt.
Corrugator belt is for corrugated board production line and developed specifically for Double Facer. Corrugator belts consistently keep the fastest absorption & release of moisture, which secures high quality cardboards with less consumption of heat and energy, and higher speed is assured. Corrugator belt have been specially developed for the transport of board and optimization of the drying process ,they resist the stress continuously and achieve as long a life as possible.
3. Type
YK-GSD--- High Speed Corrugator Belt
-----------------------------------------------------------
● Fast absorb & release moisture, durable.
● Universal application.
4. Specification
-----------------------------------------------------------
| Corrugator Belt | ||
| Model | YK-HSD | |
| Material | 100% PET SYNTHETICS | |
| Speed | 100-300m/min | |
| Weight | 7.6+0.2kg/m2 | |
| Thicknss | 8-9mm | |
| Width | 1400-3200mm | |
| Heat resistance | 240℃ | |
| Tension | 65MPA | |
| Air.permeability | 2.0M3/M2MIN | |
| Min.winding radius | R70(mm) | |
| Life | 40-50 MILLION METER | |
5. Application
-----------------------------------------------------------

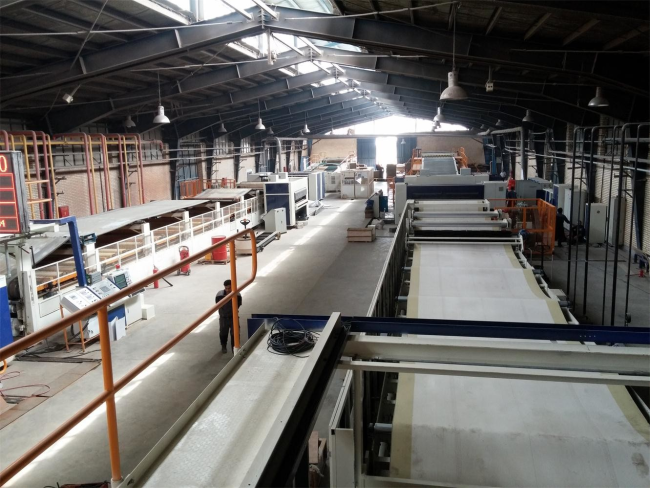

Used for 2/3/5/7 ply Automatic corrugated cardboard production line, packaging industry. If you want to see more information about CORRUGATOR BELT, please here. It will provide more details about corrugator belt.
