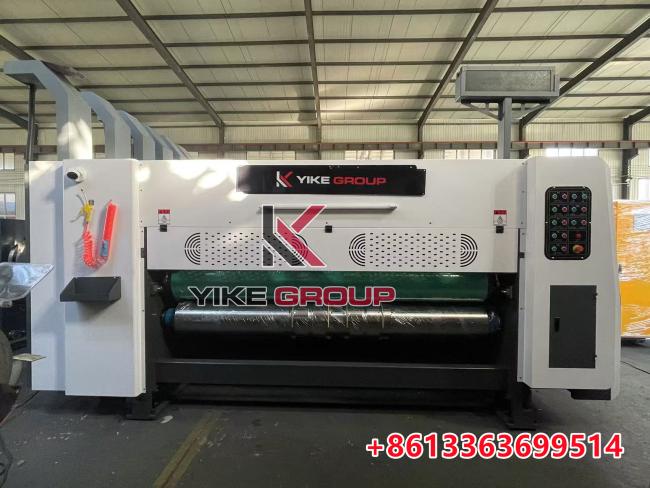

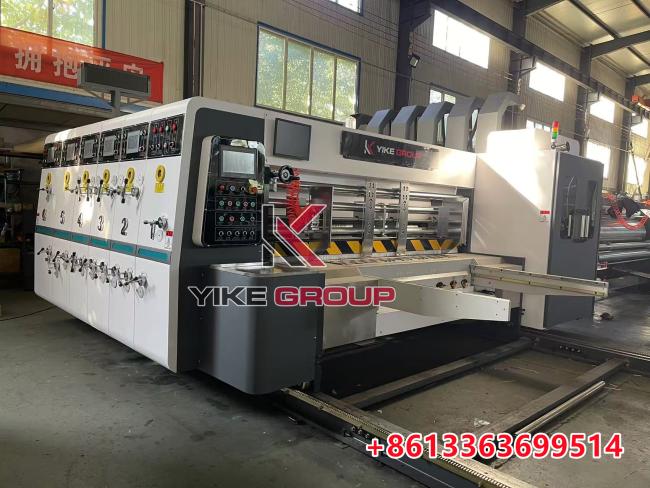

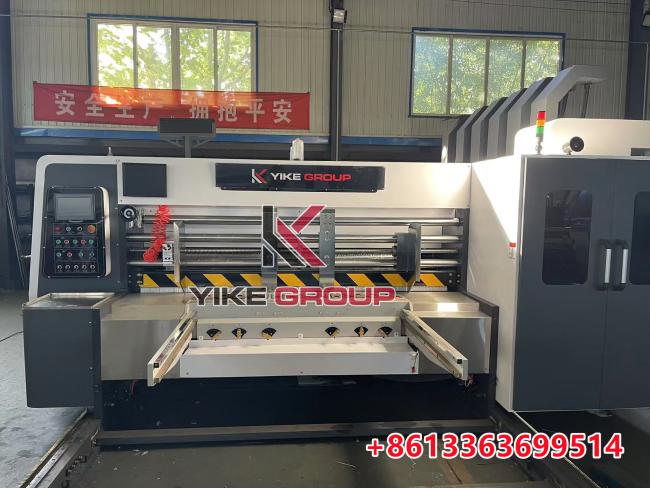

Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
Detailed Product Description
| Power(W): | 50kw | Condition: | New |
| Voltage: | 380v | Dimension(L*W*H): | Depends |
| Weight: | Depends | Production Capacity: | 180pcs/min |
| Color: | Customer's Request | Design Speed: | 180pcs/min |
| Keyword: | Printer Slotter Die Cutter | Working Speed: | 250pcs/min |
| Max Paper Size: | 1200*2800mm | Min Paper Size: | 350*600mm |
| Product Name: | Lead Edge Feeder Flexo Printer Slotter Die Cutter | Model: | YK-1228 |
| Type: | Box Printer Machine |
Yk-1228 Lead Edge Feeder Printer Slotter Die Cutter Machine For Corrugated Carton
|
YKH-1228 LEAD EDGE FEEDER PRINTER SLOTTER DIE CUTTER MACHINE |
|
Wall board thickness |
50mm |
Max Machine Speed (pcs/min) |
180 |
Economic Working Speed (pcs/min) |
150 |
Max. Feeding Size (mm) |
1200×2800 |
Max. Printing Size (mm) |
1200×2800 |
Max. Slotting Size (mm) |
1200×2800 |
Min. Feeding Size (mm) |
350x650 |
Skip-feeding Size (mm) |
1400×2800 |
Standard Plate Thickness (mm) |
3.9 |
Min. slotter distance POSITIVE |
130X130X130X130 |
Min. slotter distance NEGATIVE |
230X65X230X65 |
Max slotter depth (mm) |
300 |
Print precision (mm) |
±0.3 |
Slot precision (mm) |
±1.0 |
Suitable Cardboard Thickness (mm) |
2 - 11 |
Feeder Unit:
1. Lead-edge suction feeding system, easy operation, high accuracy,(adopts lead feeder system).
2. Button switches electrically control the separation and combination of machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.
3. Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.

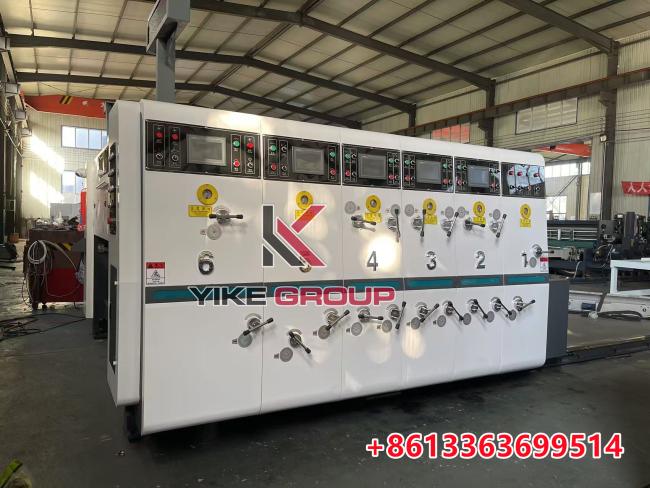

Printer Unit:
1. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
2. Adopt high quality seamless delicately processing, dynamic balance adjustment, stable operation
3. Feeding roller gear adopts no-side-gap regulating mechanism, can adjust the interval of 12mm
4. Printing phase adjustment of PLC computer display adjustment

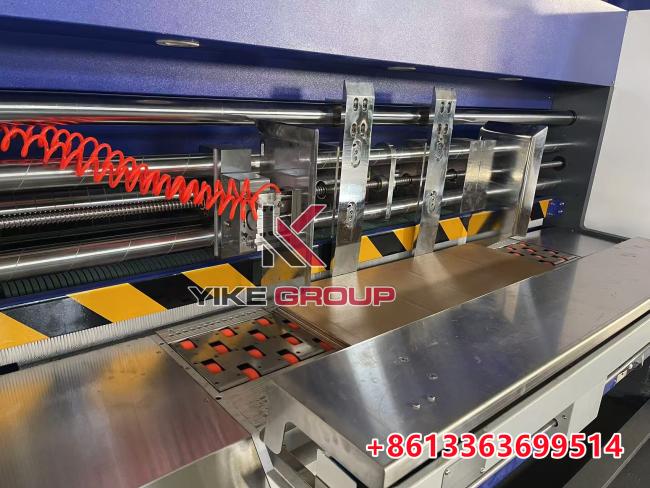

Slotting Unit:
1. The first pressure line round, after preloading cardboard not easily crush
2. The above press round Urethane appearance package, will not damage the cardboard
3. The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
Die cutting Unit:
1. Die-cutter phase, computer and electric digital control
2. Rubber roller and die roller gap use computer and electric digital control
3. The rubber roller compensated by motor-driven, control the speed of thr rubber roller, range ±3mm
