1800mm Electric Mill Roll Stand Used for Corrugation Line

Price Negotiable

Price: Negotiation

MOQ: 1set Electric Mill Roll Stand

Delivery Time: 30 days after deposit

Brand: YIKE GROUP

Product Description

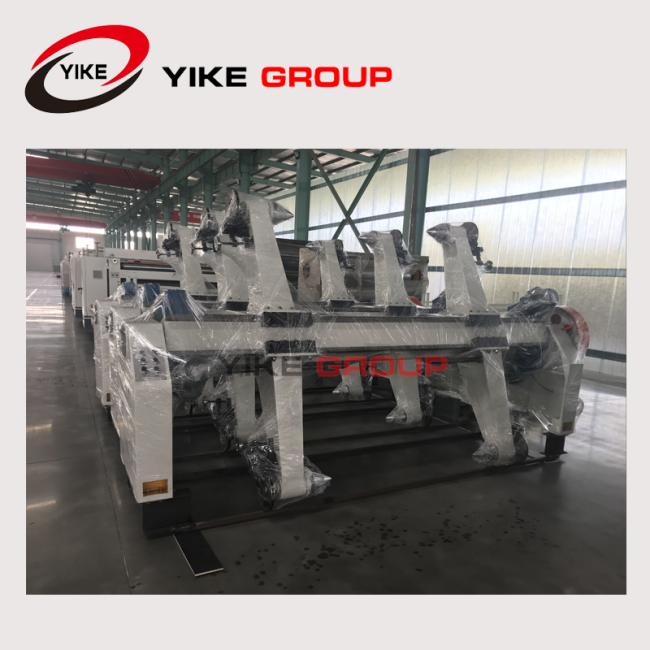

1800mm Electric Mill Roll Stand Used In Corrugation Line

ZJ-F Electric Mill Roll Stand

※Structural features:

★The symmetrical structure can also install two bundles of paper at the same time, Paper can be used non-stop for a job. Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around translational motion, etc.

★Each shaftless mill roll stand is equipped with two pieces of paper guide, two sets of paper car, paper guide the use of channel 14 and the guide post-weld, paper car adopt 10mmwelded stell, the length of the track is 4500mm

★Manual disc brake, add screw following

★Electric elements centralized control the electric elements expand chuck

※Technical parameters:

1, Back stands action mode: mechanical electric operation

2, The range of paper jams:maximum:1800mm minimum:600mm

3, The diameter of paper jams:maximum:￠1400mm minimum:￠400mm

4, Unilateral maximum load: maximum 2000Kg

5, Powered motor parameters:

①Paper jams motor550W×4set 380V 50HZ short(S2)working standard

②lift motor 1.5Kw 380V 50HZ short(S2)working standard

※Mainly purchased parts, raw materials, and origin:

Name of main parts	Brands or place of origin	Material
Motor	Hebei Hengshui
Reducer	Shandong Dezhou Jin bu huan
Contacts	Chint or De li xi
Chuck	Xusheng	3 inches, 4 inches shared
Wallboard	Production own	HT200
