Hot Selling Heavy Type Carton Box Cardboard Shaftless Hydraulic Mill Roll Stand Machine

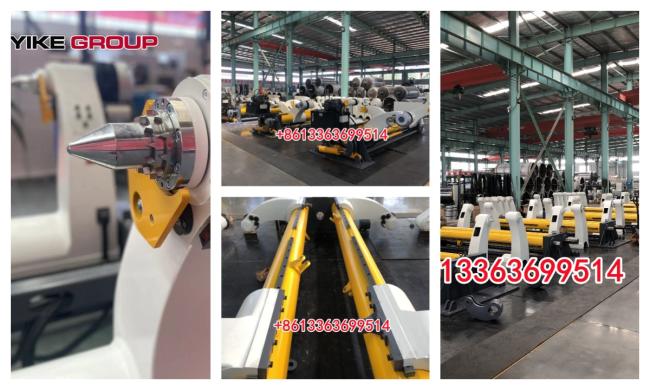

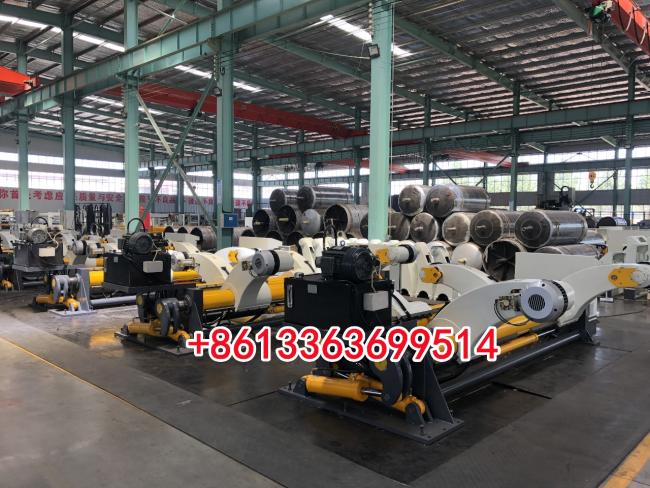

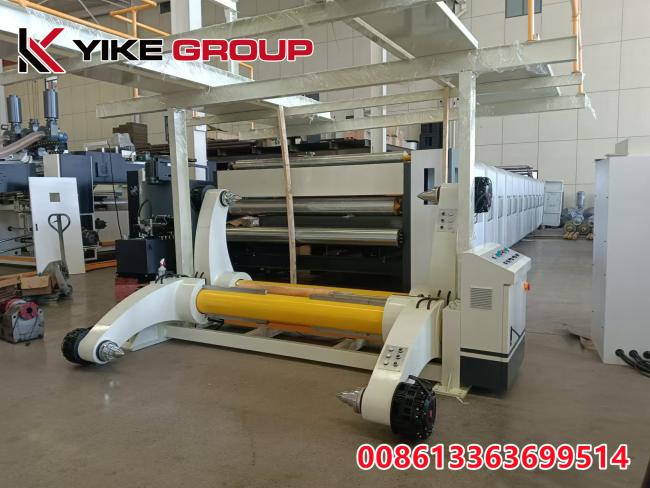

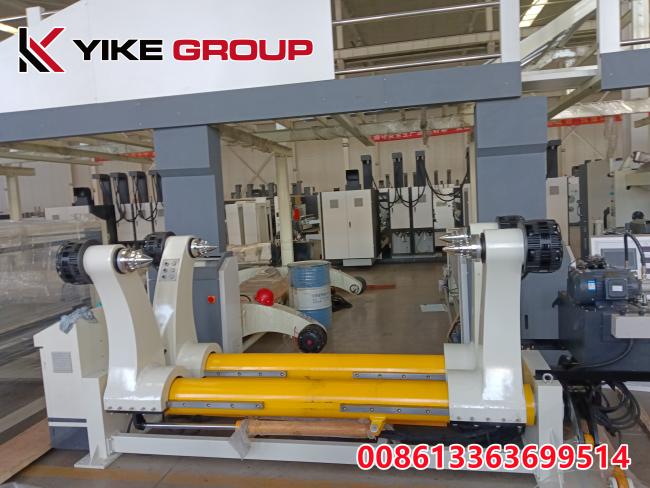

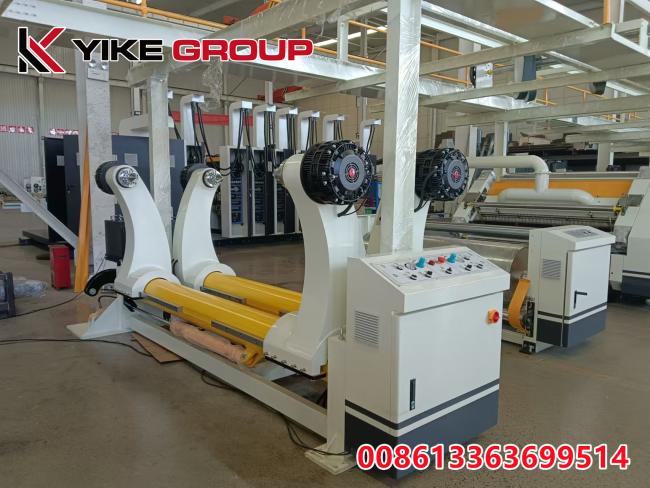

ZJ-V6B hydraulic shaftless mill roll stand

※structural feature:

★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

★brake adjustable adopts multipoint braking system.

★every stand matched two sets paper car , and they can paper on the both sides at the same time.

USAGE Of Hydraulic mill roll stand

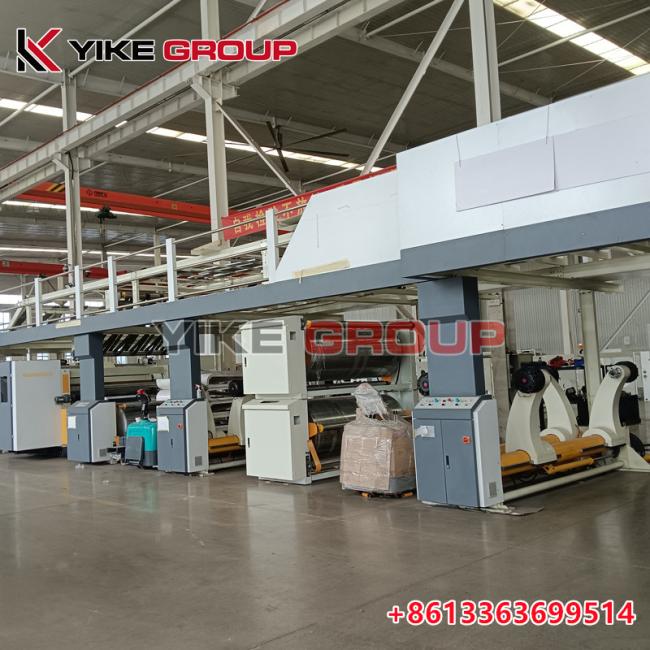

The ZJ type shaftless paper holder is one of the main equipment for producing corrugated cardboard on corrugated cardboard production lines

(or single-sided corrugated cardboard production lines), used to support the roll paper (face paper and core paper) used for producing corrugated cardboard.

This machine adopts electric clamping method to adjust the width specifications of the supported roll paper web, and uses different tension control configurations

to control the tension of the corrugated raw paper conveying, ensuring that the corrugated raw paper smoothly enters the next process and achieves

the goal of efficient production of corrugated cardboard.

This machine can only be used as a raw paper support equipment on the corrugated cardboard production line. If the machine is used for other purposes

and causes losses, the consequences shall be borne by the user

※technical parameters:

1,the range of clamping paper:MAX2200mm MIN1000mm

2,clamping diameters:MAX￠1500mm MIN￠350mm

3,main shaft diameter of paper holder:￠240mm 4,gas source work pressure(Mpa):0.4---0.8Mpa

5,equipment size:L_mx4.3*W_mx1.8*H_mx1.6 6,single weight:MAX4000Kg

※Hydraulic system parameters:

1,Work pressure(Mpa):16---18Mpa

2,lifting hydraulic cylinder:￠100×440mm

3,Clamping hydraulic cylinder:￠63×1300m

4,hydraulic station motor power:3KW --380V -- 50Hz

5,solenoid valve voltage:220V 50 Hz
