High Graphic Vacuum Transfer Printer Slotter Die Cutter Machine

Price Negotiable

Price: $280,000.00 /set

MOQ: 1set for High Graphic Vacuum Transfer Printer Vanish Dryer Slotter Die Cutter Machine

Delivery Time: 90 Days After Deposit

Brand: YIKE GROUP

Product Description

High Graphic Vacuum Transfer Printer Vanish Dryer Slotter Die Cutter Machine

※Main Technical Parameters

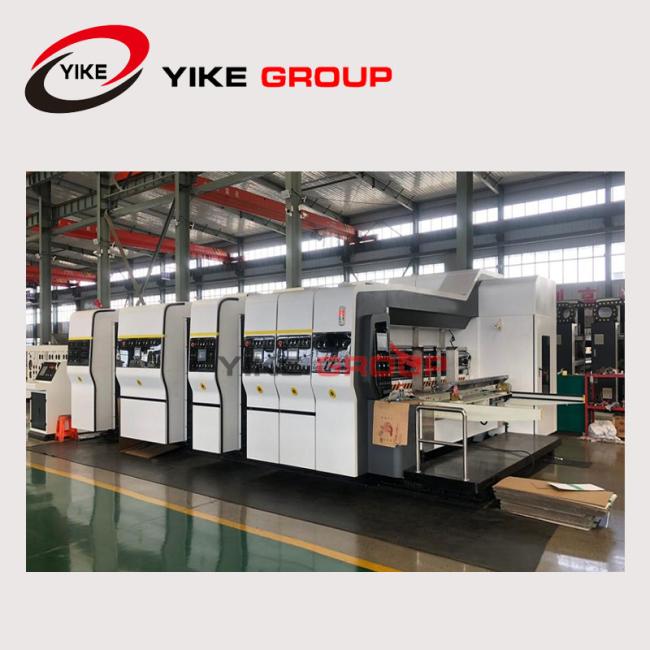

YIKE 9022 FULLY AUTOMATIC VACUUM FLEXO SLOTTER DIECUTTER STACKER MACHINE
Wall board thickness	60mm
Gear thickness	50mm
Max Machine Speed (pcs/H)	15,000
Max. Feeding Size (mm)	900×2200
Max printing/working size (mm)	900×2000
Min. Feeding Size (mm)	260x650
Wall inner distance	3200mm
Standard Plate Thickness (mm)	7.2mm
Suit corrugated thickness	2-11mm
Max slotter depth (mm)	300
Print precision (mm)	±0.1
Slot precision (mm)	±1.0
Die cut precision (mm)	±1.0

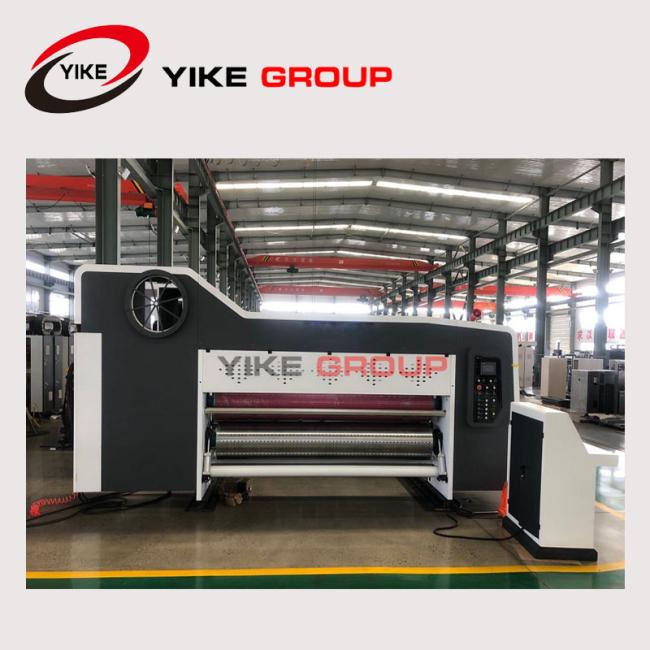

Lead-edge Feeding System

Can measure the corrugated cardboard thickness, can adjustment feeding gap automatic
7.5KW high-pressure centrifugal fans, according to the cardboard
warping degree of the frequency control pressure, to ensure warp
cardboard or thin cardboard high-speed accurate transmission.
Left and right side baffle position electrically adjustable,
screw-driven. and can remember computer.
The front baffle adjust the position of the upper and lower intervals

※Printer Unit

Printing Roller

With printing plate
High-quality steel production, surface ground, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
Roller horizontal direction and circumferential direction with datum line, convenient for aligning the plate
Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.
Installed with a footswitch to control plate roller reversing, convenient change plate

※Slotting Unit

Angle cutter made by ITALY model, cutting ring use Rubber materials
Computer auto-control cardboard size by Linear guideway
6 shaft with rubber pre-creasing, creasing, slotter
The first pressure line round, after preloading cardboard not easily crush
The above press round Urethane appearance package, will not damage the cardboard
The slotter knife stock use a traverse mechanism, screw with linear guide, to move more flexible and precise

※Die-cutting Unit

Rubber roller mechanical spiral commutation 40mm move about the horizontal structure
Die-cutter phase, computer, and electric digital control
Horizontal phase, computer, and electric digital control, range ±5mm
Rubber roller and die roller gap use a computer and electric digital control,
