High Speed Lead Edge Two Colors 380v Carton Printing Slotting Machine

Lead-edge Feeding System

1. Can measure the corrugated cardboard thickness, can adjust feeding gap automatic

2. 7.5KW high-pressure centrifugal fans, according to the cardboard warping degree of the frequency control pressure, to ensure warp cardboard or thin cardboard high-speed accurate transmission.

3. Left and right side baffle position electrically adjustable,screw-driven. and can remember by computer.

4. Front baffle adjusts the position of the upper and lower intervals synchronization by manual.

※Printer Unit

Printing Roller

1. With printing plate

2. High-quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

3 Roller horizontal direction and circumferential direction with datum line, convenient for align plate

4.Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

5 Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.

6. Installed with foot switch to control plate roller reversing, convenient change plate

7. Auto-zero function, order memory.

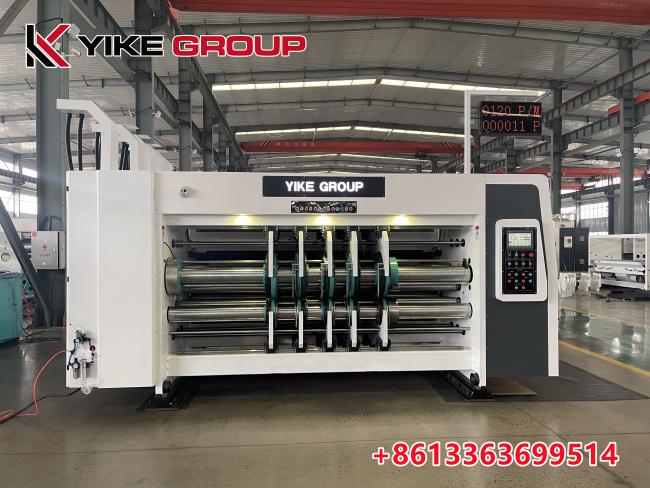

※Slotting Unit

• Angle cutter made by ITALY model, cutting ring use Rubber materials
• Computer auto-control cardboard size by Linear guideway
• 6 shaft with rubber pre-creasing, creasing, slotter
• The first pressure line round, after preloading cardboard not easily crush
• The above press round Urethane appearance package, will not damage the cardboard
• The slotter knife stock use a traverse mechanism, screw with linear guide, to move more flexible and precise
