Steam Heating 320C Fingerless Adsorption Single Facer

structural feature:

★adopt hood suction structure,matched high pressure powerful fan. Gas supply and electrical control cabinet to focus on the same operation, the operating side full cover closed.

★High quality resin sand casting,wall thickness 200mm.Adopt independent gear box, Universal joint transmission structure.

★install the lifting trolley on the conveyor bridge,Need to use the car will tile roll assembly and pressure roller, such as convenient and quick.

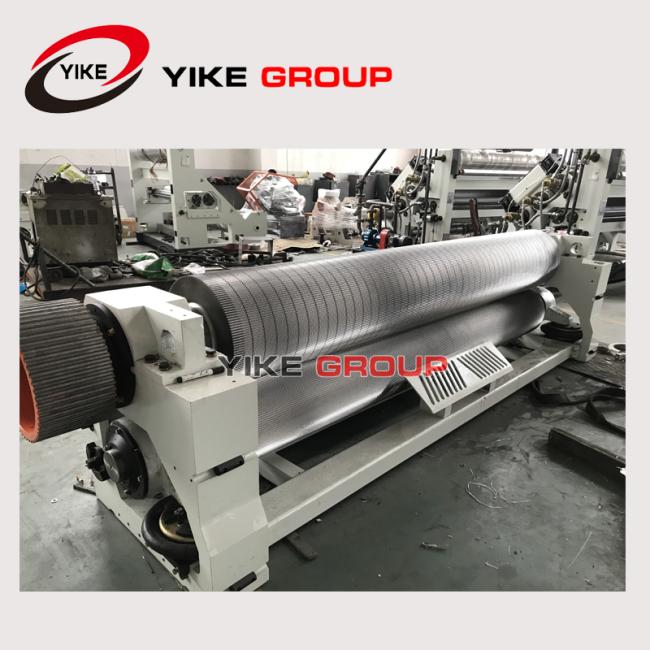

★corrugated roller adopt tungsten carbide dealing,diameter of the main corrugated roller¢ 320mm,Quenched→rough car→bore fine boring→shaft head shrunk-on→welding → tempering to stress→fine cars→coarse grinding→IF quenching→CNC grinding machine grinding→tungsten carbide dealing,hardness of surface is HV58degrees.

technical parameters:

1.effective width:1800mm

2,operate direction:left or right(Determined in accordance with the customer's facility)

3.design speed:150m/min

4.range of temperature:160—180℃

5.air source:0.4—0.9Mpa

6.steam pressure:0.8—1.3Mpa

7.equipment:Lmx3.5*Wmx1.7*Hmx2.2

Mainly purchased parts, raw materials and origin:
