Corrugated Belt For BHS,TCY, FOSBER, CHAMPION, YIKE GROUP Corrugation Line
Price:
Negotiation
MOQ:
20 Square Meter Corrugated Belt
Delivery Time:
30 Days After Deposit of Corrugated Belt
Brand:
YIKE GROUP
Product Description

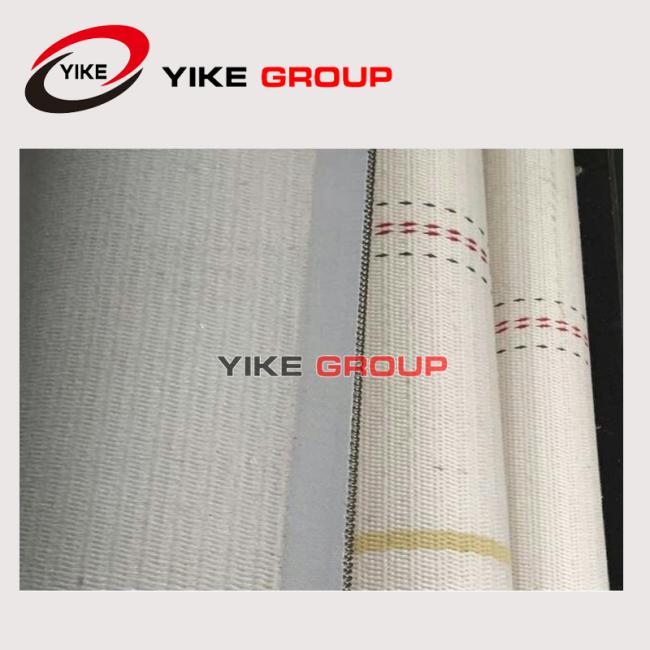

Common Edge Corrugated Belt For BHS,TCY, FOSBER, CHAMPION, YIKE GROUP Corrugated Paperboard Production Line
I: Introduction
Common edge woven type Corrugator belt also named Corrugated board conveyor belt.
Common edge Corrugator belt is for Lower speed of corrugated board production line.
II: Corrugator Belt Seam
1: USA Fastener clipper With Rubber
2: Hot Jaw Lacing
|
Model |
YK-C Common edge |
|
Thickness |
9-10 mm |
|
Material |
Synthetics |
|
Width |
1400mm-2500mm |
|
Heat-resistance |
200℃ |
|
Tensile strength |
65Mpa |
|
Coefficient of friction |
≥ 0.40µ |
|
Weight per unit |
(7.5±0.3)kg/㎡ |
|
Air-permeability 40mm water Column |
2.0m³/㎡ min |
