380V / 415V / 440V / 480V Corrugated Roller For 320Q Fast Change Single Facer

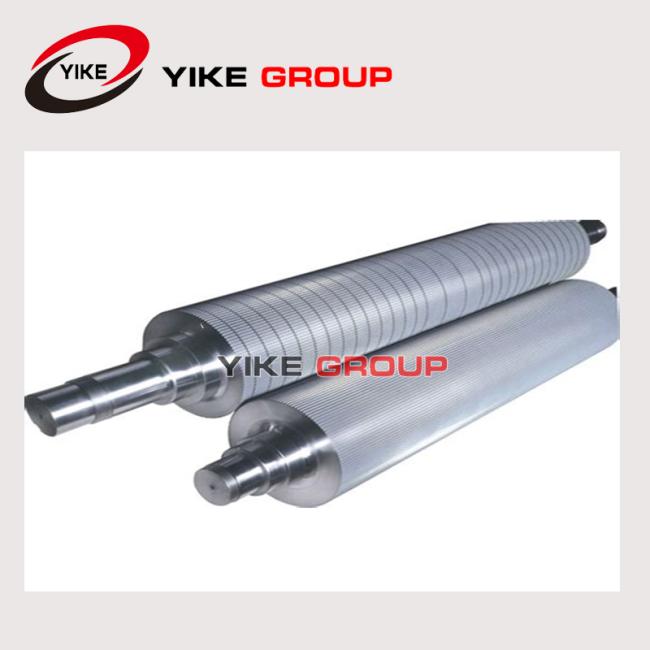

Corrugated Roller for 320Q Single Facer
Features:
● High precision hard chrome steel A C B E F G flute corrugated roller
● Type: Hard Chrome & Tungsten Carbide

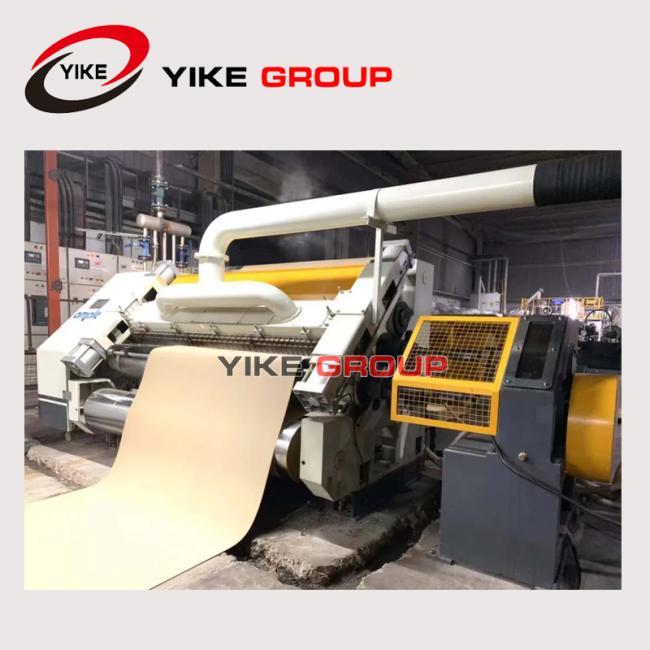

● Used for carton box corrugator machine-Single Facer
Description
1. Hard Chrome Type Corrugated Roller
● The surface is well treated by grind and plated chrome.
● Different type of flute according to user's request.
2. Tungsten Carbide Type Corrugated Roller
● Tungsten Carbide corrugated roller with lower flute height, and height of teeth keep for long time, save flute paper and glue capacity, make the paperboard stable quality. More important is the flute height almost not change during whole running life.
|
Flute |
A |
C |
BC |
B |
D |
E |
F |
G |
|
Profile |
UV |
UV |
UV |
UV |
UV |
UV |
UV |
UV |
|
Counts(300mm) |
34±2 |
36±2 |
44±2 |
50±2 |
66±3 |
96±4 |
124±10 |
185±12 |
|
Height |
4.6-4.9 |
3.6-3.9 |
3.0-3.4 |
2.6-2.9 |
1.9-2.1 |
1.1-1.8 |
0.7-0.8 |
0.5-0.65 |
|
Take Up Rate |
1.51-1.59 |
1.44-1.51 |
1.42-1.49 |
1.36-1.42 |
1.40-1.41 |
1.29-1.39 |
1.22-1.26 |
1.20-1.25 |
