Hard Chrome Material Corrugated Roller For MARQUIP FOSBER Mishubishi
Corrugated Roller With Hard Chrome Material For MARQUIP, FOSBER, Mishubishi Corrugated Cardboard Production Line
Features:
● High precision hard chrome steel A C B E F G flute corrugated roller
● Type: Hard Chrome & Tungsten Carbide
● Used for carton box corrugator machine-Single Facer
Description

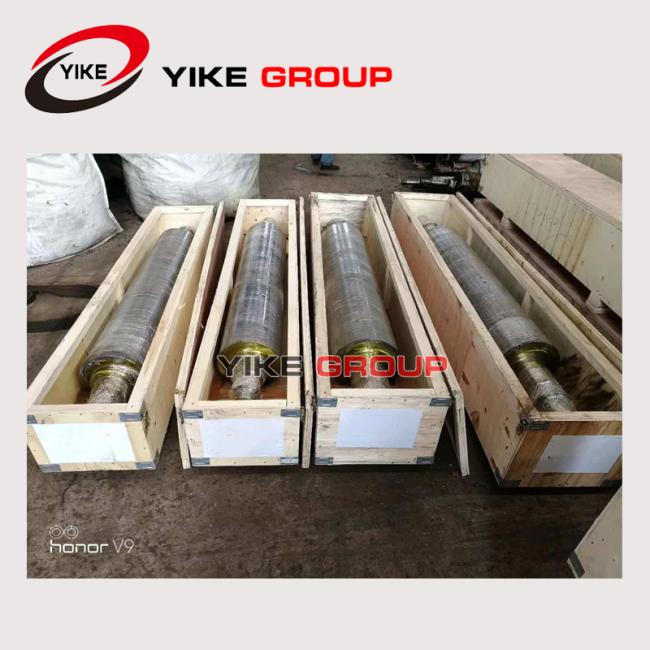

Hard Chrome Type Corrugated Roller
● The upper and lower corruagted( corrugating, flute) roller for single facer machine
● Made of 48 CrMo alloy steel or tungsten carbide with hard treatment by laser,the hardness is above HRC58o-60o
● The surface is well treated by grind and plated chrome.
● Different type of flute according to user's request.
Characteristics
|
Flute |
A |
C |
BC |
B |
D |
E |
F |
G |
|
Profile |
UV |
UV |
UV |
UV |
UV |
UV |
UV |
UV |
|
Counts(300mm) |
34±2 |
36±2 |
44±2 |
50±2 |
66±3 |
96±4 |
124±10 |
185±12 |
|
Height |
4.6-4.9 |
3.6-3.9 |
3.0-3.4 |
2.6-2.9 |
1.9-2.1 |
1.1-1.8 |
0.7-0.8 |
0.5-0.65 |
|
Take Up Rate |
1.51-1.59 |
1.44-1.51 |
1.42-1.49 |
1.36-1.42 |
1.40-1.41 |
1.29-1.39 |
1.22-1.26 |
1.20-1.25 |
