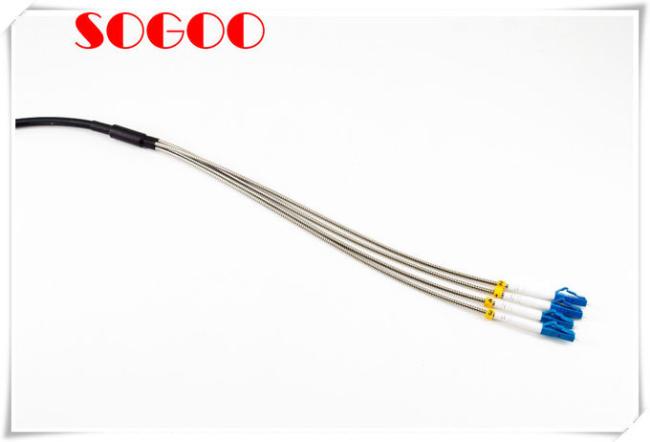

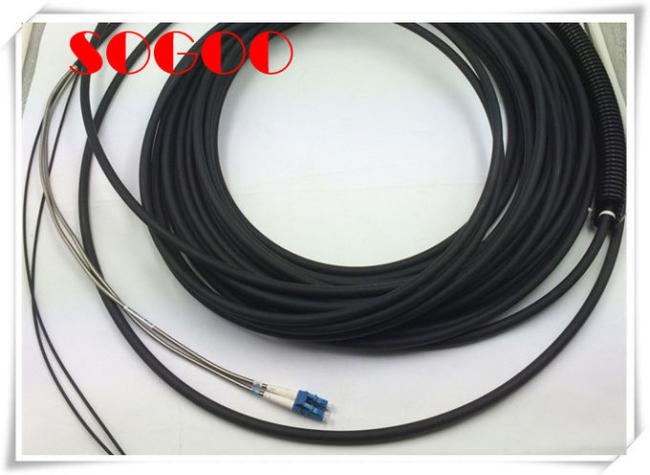

5M DLC-DLC Armored Fiber Optic Patch Cord Multimode Outdoor FTTA RRU BBU Base Station
5M DLC-DLC Multimode outdoor FTTA RRU BBU Base Station armoured fiber optic patch cord
Optical Cable Assembly, DLC/PC, Singlemode 9/125um (Multimode 62.5/125, 50/125),GYFJH 2A1a (LSZH), 7.0mm, 2cores, 0.03m/0.34m, 2mm, Outdoor Protected Branch Cable
(ARMOURED TYPE) Length= 5m, 10m, 20m, 30m, 40m, 50m, 70m, 100m, 150m, 200m...
With the continuous development of optical fiber communication technology, 3G commercial trial network, high-speed local area networks and optical access network such as the market that is a sustained manner. Especially in the 3G, 4G, and WiMax base stations and fiber-optic distributed zoom technology, ODLC fiber optic cable connector assemblies are rapidly becoming the standard connector interface.
DLC fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/TD-SCDMA/WiMax/GSM) tailored products that can be meet the FTTA(fiber to the top of the tower) program requirements for outdoor environment conditions and adverse weather conditions.
|
Item
|
Description
|
Standard
|
|
|
Cable Model
|
GYFJH-4B1 / GYFJH-2B1 / GYFJH-2A1
|
|
|
|
Number Optic-cable Core
|
2
|
|
|
|
Weight Kg/km
|
45.0
|
|
|
|
Outside Dia. mm
|
Φ7.0±0.2
|
|
|
|
Outer Sheath
|
material
|
LSZH
|
YD/T 1113-2001
|
|
color
|
BLACK
|
|
|
|
thickness
|
1mm
|
|
|
|
Tight buffer
|
material
|
FRP
|
|
|
Dia. mm
|
Φ1.0±0.1
|
|
|
|
Subunit
|
Quantity(pcs)
|
2
|
|
|
Sheath Dia.
|
Φ2±0.1mm
|
|
|
|
Sheath Material & Color
|
LSZH & yellow
|
|
|
|
Reinforced core
|
aramid fiber
|
|
|
|
Mark Unit
|
Differ A,B,C and D fiber within 10mm
|
GB/T 6995.2
|
|
|
Fiber core
|
Fiber Type
|
G.652D
|
|
|
sheath color
|
white
|
|
|
|
Sheath material
|
LSZH
|
|
|
|
Out-Dia fiber for Tight layer
|
0.90±0.05 mm
|
|
|
|
Fiber specification
|
9/125(G652D)
|
|
|
|
Allowable Tension
|
Short term ≥500N
|
|
|
|
Long term ≥300N
|
|
||
|
inflaming retarding Class
|
Confirm to IEC60332-3C
|
|
|
|
Mini Bending radius
|
10D
|
|
|
|
Fiber Cable Printing
|
Manufacturer +fiber cable model + fiber cable transmission model + standard +LSZH + Production Date
|
|
|
|
Working life
|
≥25years
|
|
|
*all materials confirm to RoHS
Feature
* IP65 protection, salt-mist proof
* Easy, reliable and cost-effective installation
* The connector of side-A is duplex LC, and side-B can be LC, SC or FC
* Thread structure guarantees the trusted connection
Applications:
3G 4G base station used
Aerospace & Defence
Equipment diagnosis
FO sensor
TTA ,FTTP, FTTX,WIMAX
BBU, RRU, RRH, LTE
|
Cable Dimension
mm |
Cable Weight
kg/km |
Tensile(N)
|
Crush
N/100mm |
Min. Bend Radius
mm |
Range of Temperature
|
||||
|
Long Term
|
Short Term
|
Long Term
|
Short Term
|
Dynamic
|
Static
|
||||
|
2
|
7.0
|
42.3
|
200
|
400
|
1100
|
2200
|
20D
|
10D
|
-30-+70
|
|
Note:
1. All the values in the table, which are for reference only, are subject to change without notice;
2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter; 3. D is outer diameter of the round cable; |
|||||||||
|
Fiber Specification:
|
|
|
Fiber type
|
50/125,9/125
|
|
Core Diameter
|
50 + 2.5
|
|
Core Non-Circularity
|
<=5.0 %
|
|
Cladding Diameter
|
125.0+1.0um
|
|
Cladding Non-Circularity
|
<=1.0 %
|
|
Coating Diameter
|
245+7
|
|
Coating-Cladding Concentricity Error
|
<=12.0um
|
|
Coating Non-Circularity
|
<=6.0um
|
|
Connecton Specification
|
|
|
ITEM
|
PARAMETER
|
|
Connector type
|
DLC/UPC
|
|
Insertion Loss
|
<=0.3db
|
|
Return Loss
|
>=35db
|
|
Fiber mode
|
Multi-mode,50/125,single mode,9/125
|
|
Operating wavelength
|
850nm, 1300nm,1310,1550nm
|
|
Test wavelength
|
850nm, 1300nm
|
|
Repeatability
|
<=0.1
|
|
Interchangeability
|
<=0.2dB
|
|
Durability
|
<=0.2dB
|
|
Fiber Length
|
1m, 2m….. any length optional.
|
|
Length and tolerance
|
10cm
|
|
Operating Temperature
|
-40C ~ +85C
|
|
Storage Temperature
|
-40C ~ +85C
|
1. Factory Price
2. OEM
3. Fast delivery,low freight
4. Customize service
Specification
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.
Usage
Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Look forward to your inquiry on 5M DLC-DLC Multimode outdoor FTTA RRU BBU Base Station armoured fiber optic patch cord.
