Ring Buckle Type Coaxial Cable Grounding Kit Sus 304 Metal 1 Year Warranty
Ring Buckle Type Coaxial Cable Grounding Kit Sus 304 Metal 1 Year Warranty

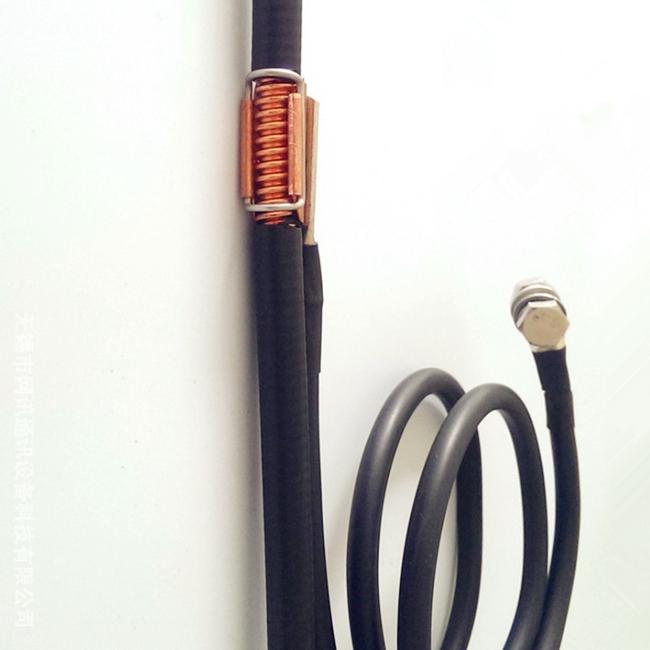

Ring Buckle Type Coaxial Cable Grounding Kit suit for grounding binding of all kinds cable: 1/4",1/2",3/8",7/8",5/4",1-5/8", etc.
Component part:
Clamp: Stainless steel
Connector: T2 cooper grounding wire, standard configuration 0.6, 0.8, 1m
The length can made according to the customer’s requirement
Bolt & nut: stainless steel
Batten: stainless steel
Technical parameters:
| Nominal impulse discharge current | 70KA |
| Insulation resistance | 500MΩ |
| Grounding resistance | ≤5mΩ |
| Inner contact material | Tinned braid copper |
| Grounding cable | AW6/16mm2 |
| Waterproofing | IP67 |
Clip-on grounding kit are an advanced type for coaxial cable grounding, providing an easy installation as well as dependable protection of coaxial cable system. The designed clip design and pre-formed strap allow the clip-on ground kits to be easily slipped over the coaxial cable's outer conductor.
The latch was optimized to provide a secure fix maximizing performance by ensuring proper contact surface area and pressure.
Framework type grounding kit is compact design for outdoor coaxial cable's (corrugated or braid) grounding. With Tinned copper strip & butyl seal, framework type grounding kit offers Quick installation, good waterproofing & cost efficiency.
Small Universal Grounding Kit is designed according to Commscope (Andrew) GK-SUNV. It's small and light, can be used for coaxial cable under 0.6 in.
Bolt-on Grounding Kits are used for 3/8" in corrugated & braided coaxial cable. It requires wrench when installing. That makes it perfect contact area. Moreover, we can make it for different cable.
Universal Grounding Kit can be used for all coaxial cable. It consist of a long thick copper strap. You can cut it according to the coaxial cable you will used for.
