4 6 8 12 24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail Patch Cord
4 6 8 12 24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail Patch Cord
Waterproof fiber pigtail/Patch cord can be used in harsh environment. It is mainly used in outdoor connection of the optical transmitter. Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.
Waterproof fiber pigtails/Patch cord are widely used in data transmission network, typical types are with 2 fiber cores, 4 fiber cores or 8, 12 fiber cores. By adopting the special structure cables and connectors, these fiber cable assemblies are widely used in CATV and other applications.
Features: Fiber core: 2, 4, 6, 8,12 optional Waterproof features & reliable performance Pull & erosion resistance, good grounding Low insertion loss, high return loss, excellent exchangeability, high stability The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.
Application: CATV & LAN Data & Communication System Connection for main fiber and optical receiver.
Specification:
| Parameter | Unit | Water-proof fiber pigtail /Patch cord | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion loss (typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥35 |
| Operating wavelength | nm | 1310, 1550 | |||
| Exchangeability | dB | ≤0.2 | |||
| Vibration | dB | ≤0.2 | |||
| Operating temperature | ℃ | -40~75 | |||
| Storage temperature | ℃ | -45~85 | |||
| Inner Cord diameter | mm | φ3.0,φ2.0,φ0.9 | |||
| Fiber cores | Cores | 4, 6, 8, 12, 24, … fibers | |||
| Applicable connector | FC, SC, ST, MU, LC | ||||
| Waterproof connector material | Aluminum or copper optional. | ||||

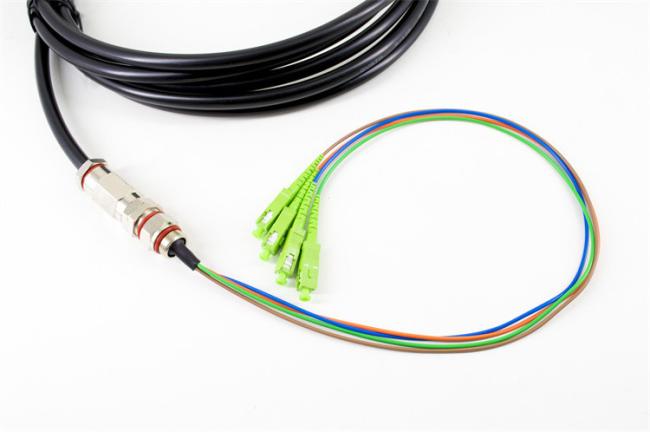

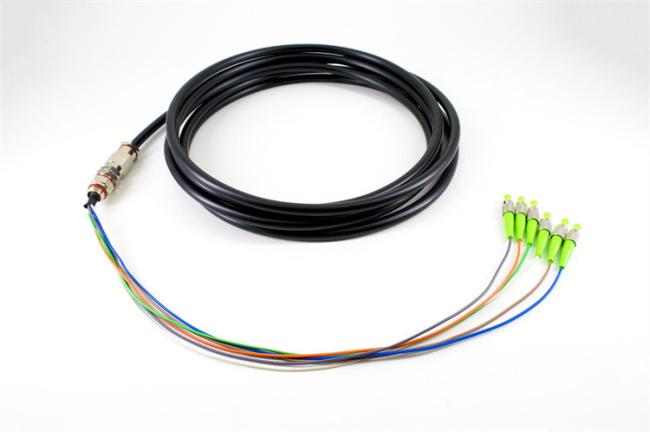

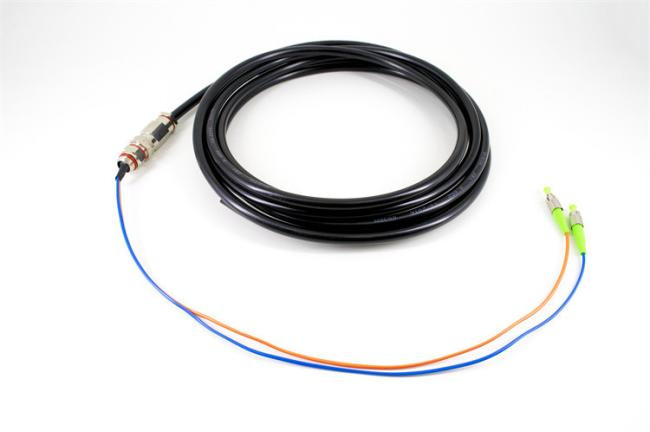

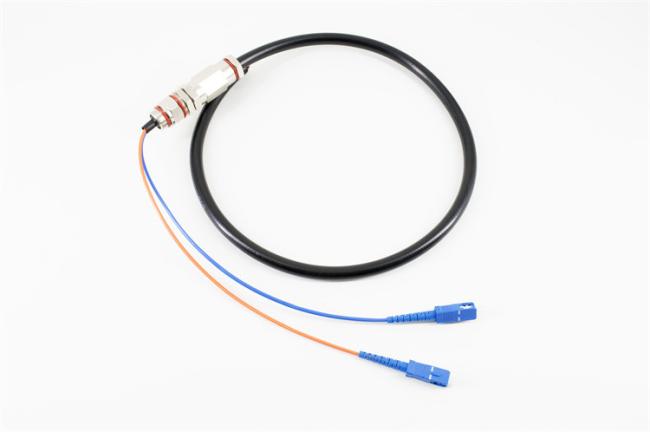

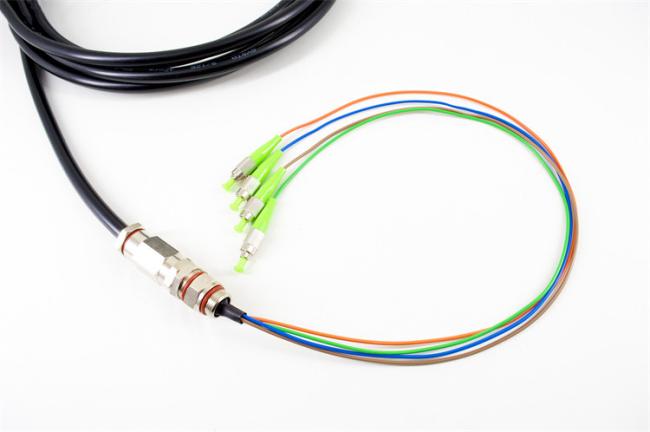

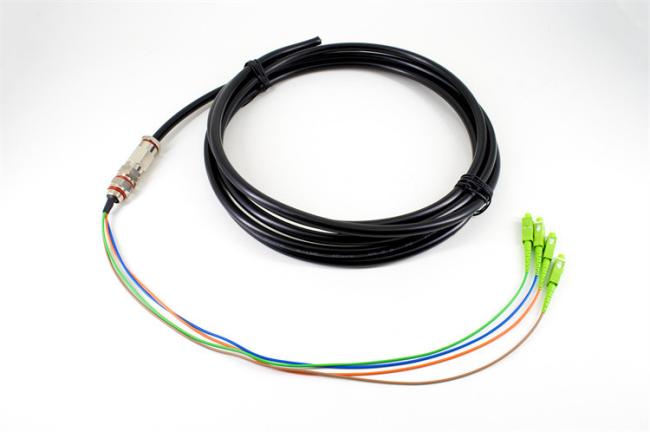

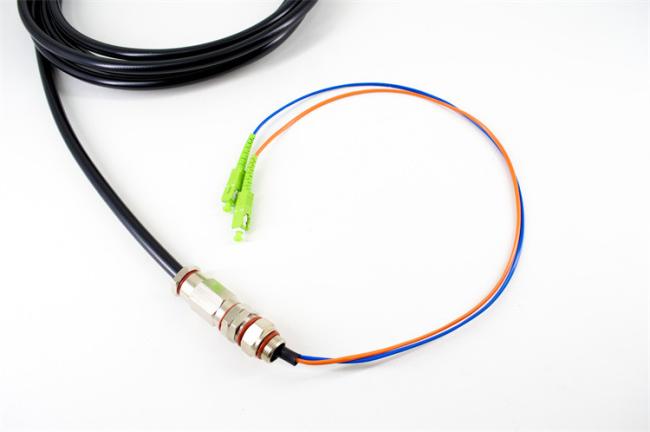

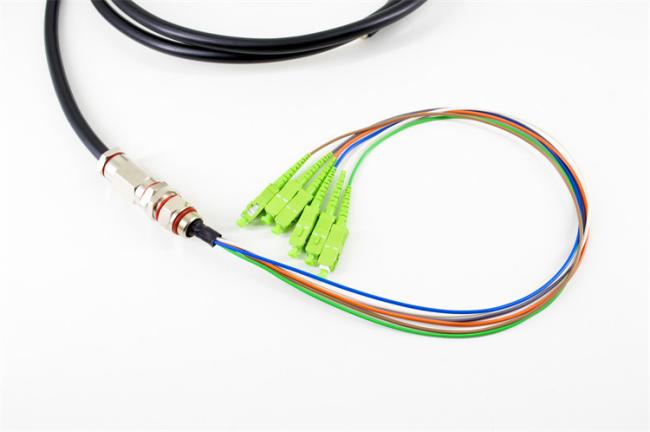

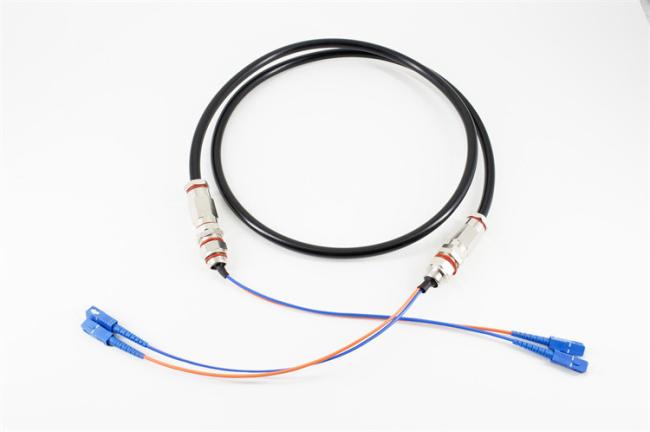

Real Object Photos:
Send us your inquriy, if you interested in 50m NSN boot FUFBB MM OD fiber cable LC OD-LC OD dual 50m, , Dia of 5.0mm.
