PCB 3 x 1 USB HDMI RJ45 Female Connector Including 2 Stacked USB Ports
Price:
Preferential & Competitive
MOQ:
1000
Delivery Time:
Stock or 4 weeks
Brand:
DGHELING
Product Description

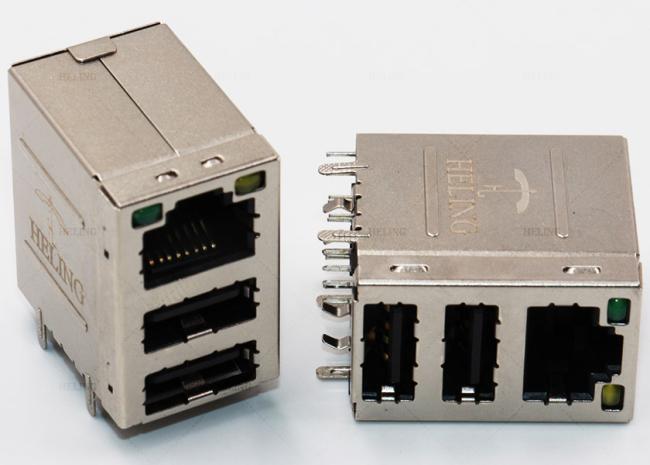

3 x 1 Ports Including 2 Stacked USB Ports USB HDMI RJ45 Female Connector for PCB
Specification
1, Part number : MU88-B031-CRL101
2, Description : 3 x 1 Shielded PCB USB / HDMI RJ45 Jack
THT solder, Right Angle mounting, Tab up RJ45
3, Component type: THT PCB USB / HDMI RJ45 Jack
4, Status Indicator : YES Green / Yellow
5, Application : Widely used for networking products, says HUB, SWITCH, PC SYSTEM, PRINTER, SET TOP BOX AND SO ON.
Physical characteristics
| 3 x 1 Ports Including 2 Stacked USB Ports USB HDMI RJ45 Female Connector for PCB | |||||||
| Part Number: | MU88-B031-CRL101 | ||||||
| Product Family: | USB / HDMI RJ45 | ||||||
| Overview: | RJ45 3x1 ports 8P8C Jacks with 2 USB ports | ||||||
| Description: |
3x1 ports USB /HDMI RJ45 connector, Right Angle, Tab UP,Shielded | ||||||
| Operating temprature range: -40℃-70℃ | |||||||
| General | |||||||
| Series: | USB / HDMI RJ45 | ||||||
| Numbers of ports: | 3x1 | ||||||
| Orientation: | Right angle(side entry) | ||||||
| Pin type: | THT solder | ||||||
| Positions/ Loaded contacts: | 8P8C | ||||||
| Latch: | Tab UP | ||||||
| LEDs: | Yes Green / Yellow | ||||||
| Shielded: | YES | ||||||
| Jack Height: | 13.2mm | ||||||
| Magnetic: | No | ||||||
| Performance category: | Cat 5 | ||||||
| Power over Ethernet(PoE): | Non-PoE | ||||||
| Physical | |||||||
| Color-Resin: | Black | ||||||
| Durability(mating cycles max): | 750 | ||||||
| Material | Metal: | Phosphor bronze | |||||
| Resin: | Liquid crystal polymer | ||||||
| Plating mating: | Gold over Nickel | ||||||
| Plating termination: | Gold Flash | ||||||
| Plating min- mating: | 1u"/3u"/6u"/15u"/30u"/50u" optional | ||||||
| Net Weight: | TBA | ||||||
| PCB: | FR4 | ||||||
| PCB locator: | Yes | ||||||
| PCB retention: | None | ||||||
| PCB retaining post: | T-post | ||||||
| PCB Thickness- Recommended | 1.6mm | ||||||
| Packaging type: | Tray | ||||||
| Temperature range: | -40℃-70℃ | ||||||
| Turns Ratio RX: | 1CT:1CT | ||||||
| Turns Ratio TX: | 1CT:1CT | ||||||
| Configuration RX: | T,C | ||||||
| Configuration TX: | T,C | ||||||
| RoHS compliant: | YES, RoHS AND Halogen-Free | ||||||
| Electrical | |||||||
| Current rating: | 1.5AMPS | ||||||
| Voltage rating: | 125V AC | ||||||
| Insulation Resistance: | 500MΩ mini | ||||||
| Withstand voltage: | 1000V RMS 60Hz | ||||||
| Contact Resistance: | 50mΩ Max | ||||||
| Grounding to PCB: | YES | ||||||
| Grounding to Panel: | YES | ||||||
