96 ADSS strand fiber optic cable fiber optic cable Excellent Lightning Resistance non-metalic power telecommunication
All Dielectric Self-Supporting ADSS Cable
Optical Fiber Cable ADSS
Structure characters
Loose tube with non-metallic strengthen member
High flexible amaid yarn
Can work at electric field<=25KV/m in a long period
Properties
1. Up to 288 optic fibers.
2. Light weight, less additional load to tower. The maximum span can reach 1500m.
3. Strong anti-pull performance, more than 90KN.
4. Non metallic structure provides good insulation, excellent lightning resistant.
5. Equal distribution of aramid yarns with good production process, excellent stress/strain performance.
6. Excellent bullet resistant performance.
7. Excellent tracking resistant performance.
8. Installation wuthout power off and the normal transmission of cable won't be influenced by power line fault.

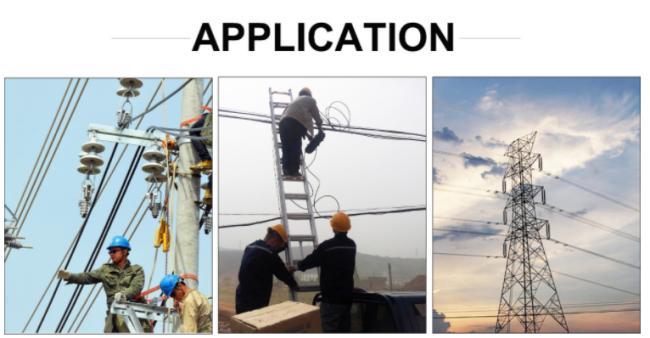

Applicable Fields
1.Long distance telecom, LAN in high voltage area or access to telecom network.
2.For power transmission system, much thunder areas and high electro-magnetic inerference.
Technical Date
for 24 core fiber, 800m span
| Fiber Optic Range | Span(M) | Out-diameter(MM) | Module(N/) | Linear Expanding Coefficient(1/K) | Weight(KG/KM) | Safely running strain(N) |
| Weather condistion:wind speed: 35m/s and 0mm ice thickness. | ||||||
| 24 | 800 | 15.5 | 2.86X10 | 0.02X10 | 200 | 29680 |
| Weather condistion:wind speed: 10m/s and 5mm ice thickness. | ||||||
| 24 | 800 | 14.5 | 2.33X10 | 0.11X10 | 185 | 19600 |
Packing&Shipping&Payment
Our Certificate
REACH,ROHS,TLC Telecom Certificate,Environmental Management System Certification,ISO9001:2000,Utility Model Patent Certificate
