12 Core Fiber Optic Cable Black Color Self Supporting Aerial Cable Brand TW-SCIE
GYXTC8s Outdoor Self-Support 12 Core Fiber Optic Cable
Product Description
This GYXTC8S Outdoor Self-support 12 Core Fiber Optic Cable has been designed for long haul / backbone application. GYXTC8S Outdoor Self-support 12 Core Fiber Optic Cable are designed for easy and economical installation.
GYXTC8S Outdoor Self-support Multimode Optic Fiber Cable Structure &Properties:
1. Up to 24 fibers The loose tube OS centrally situated with good excess length and minimizes the influence of lateral crush.
2. Water blocking tape armored and PE outer sheath prociding providing property crush resistance and gun shot resistance features.

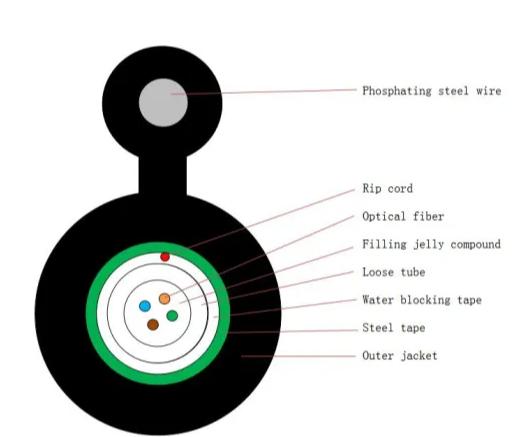

3. Cross-section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation.
GYXTC8S Outdoor Self-support 12 Core Fiber Optic Cable Applicable Fields:
This cable has been designed for aerial application with messenger wire as support member made excellent anti-pull performance and easy installation.
GYXTC8S Outdoor Self-support 12 Core Fiber Optic Cable Technical Date:
Technical data: |
||||||||||||
| Fiber core | Stranded Wire | Cable diameter (mm) | Messenger cable Diameter (mm) | Cable Height (mm) | Cable weight (kg/kg) | Min.bend radius | Max. Running tension (N) | Safe running tension (N) | Min.Breaking tension (N) | Max.crush loading (N/100mm) | ||
| Dynamic | Static | Short term | Long term | |||||||||
| 2-12 | 1×7-3.0 | 8.3 | 5.0 | 15.8 | 135 | 10D | 20D | 3000 | 1000 | 7990 | 2000 | 1000 |
Our Quality & Service:
DONGGUAN TW-SCIE CO., LTD. is committed to providing the highest quality optical fiber cable products & services to our customers by:
1. Consistently meeting for product quality and performance;
2. Timely delivery of products and services to meet our customer's requirements;
3. Ensuring that our people are properly trained so that they are better able to serve our customers.
Our Certificate:
REACH
ROHS
TLC Telecom Certificate
Environmental Management System Certification
ISO9001:2000
Utility Model Patent Certificate
As professioanl manufacturer on optical fibre cables, we can not only offer you optical fibre cables with high quality and competitive price, but also the structures as your requirment. So please feel free to contact with us for cooperation and excellent service.
Contact with me for this GYXTC8S Outdoor Self-support 12 Core Fiber Optic Cable.![]()
Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.
. FAQ
A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China.
Q2: How long has your company been doing this?
A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .
Q3:How about the cable's quality?
A4: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.
Q4: Can you produce cable as our requirements?
A6: Of course .We can supply different types of products according to your requirements with reasonable prices .
Q5:Do you accept the OEM order and how many is the MOQ?
A7:Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
