Outdoor Aerial Loose Tube Fiber Optic Cable GYTA Aluminum Wire Armoured Cable
Outdoor Aerial Loose Tube Fiber Optic Cable GYTA Steel Wire Armoured Cable

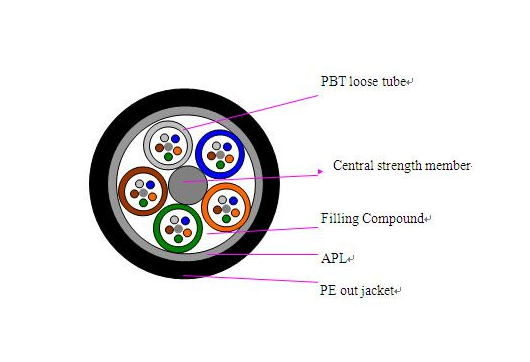

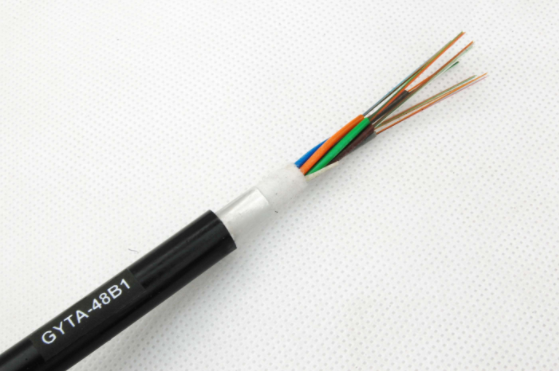

This GYTA Outdoor and Aerial Loose Tube Optic Fiber Cable has been designed for long haul / backbone application. Our stranded loose tube design provides stable performance over a wide temperature range and is compatible with any telecommunication grade optical fiber. GYTA Outdoor and Aerial Loose Tube Optic Fiber Cable are designed for easy and economical installation.
Features & Application
1.Excellent optical, mechanical & environmental performance
2.Moisture-proof & roden-proof
3.High strength-to-weight ratio
4.High tensile strength
5.High crush strength
6.Corrosion resistance
7.Very light weight
8.Very flexible bending radius
9.Long haul / backbone application
Technical data
Fiber Num. |
Outer diameter (mm) | Weight (kg/km) | Min. Bending radius(mm) | Tension (N) | Crash loading (N/100mm) | |||
| Static | Dynamic | Short term | Long term | Short term | Long term | |||
| 2-30 | 9.8 | 95 | 10 times O. D. | 20 times O. D. | 1500 | 600 | 1000 | 300 |
| 32-36 | 10.3 | 115 | ||||||
| 38-60 | 10.7 | 115 | ||||||
| 62-72 | 11.3 | 140 | ||||||
| 74-96 | 12.9 | 175 | ||||||
| 98-120 | 14.4 | 210 | ||||||
| 122-144 | 15.8 | 245 | ||||||
| 146-216 | 16.3 | 260 | ||||||
| 218-240 | 19.5 | 345 | ||||||
| 242-288 | 21.7 |
415 |
||||||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
Packing Detail
GYTA 2-288 Core Optical Fiber Cable package are wooden drum. Outdoor 2-288 Core Optical Fiber Cable's wooden dimension is 100cm*75cm*75cm, 0.57CBM
Outdoor cable's delivery length according to 2-288 Core Optical Fiber Cable cores. Also accept custom cabledrum from customers.
