24 Core Long Lifetime OPGW Optical Ground Wire Outdoor Aerial Fiber Optic Cable
OPGW Optical Ground Wire 24 Core Outdoor Aerial Fiber Optic Cable
The central Al-covered steel tube is surrounded by single or double layers of aluminum clad steel wires(ACS) or mix ACS wires and aluminum alloy wires. Al-covered Stainless Steel tube design increases the cross section of AL, to reach a better fault current and lightning resistance performance. Apply to the transmission line which requires small diameter and large fault current.
Features
• Large diameter, large fiber capacity
• The structure is stable and the reliability is high
• Excellent capability against side and outstanding short circuit current capacity
• The optimum stranding design can obtain the surplus length of secondary optical fiber
• The number of strands can be designed in two or three layers
• Match with common ground wires
Speicfication
| Structure | Max fiber count | AS sectional area | Dia.(mm) | Weight (kg/km) | RTS(kN) | 20°C DC resistance (O/km) | 40-200°C Allowable short circuit current capacity(KA2.S ) | |
| OPGW-24B1.3-100-[118;50] | 1/2.6/20AS+5/2.5/20AS+ | 24 | ≈100 | 13.2 | ≤674 | ≥118 | ≤0.93 | ≥50 |
| 11/2.8/20AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-100-[60;74] | 1/2.6/40AS+5/2.5/40AS+ | 24 | ≈100 | 13.2 | ≤479 | ≥60 | ≤0.49 | ≥74 |
| 11/2.8/40AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-110-[133;63] | 1/2.6/20AS+5/2.5/20AS+ | 24 | ≈110 | 14 | ≤760 | ≥133 | ≤0.83 | ≥63 |
| 10/3.2/20AS,Unit 1/2.5 | ||||||||
| OPGW-24B1.3-110-[140;68] | 1/2.8/20AS+5/2.7/20AS+ | 24 | ≈110 | 14.3 | ≤791 | ≥140 | ≤0.80 | ≥68 |
| 11/3.05/20AS,Unit 1/2.6 | ||||||||
| OPGW-24B1.3-110-[67;95] | 1/2.9/20AS+5/2.8/20AS+ | 24 | ≈37 | 14.1 | ≤473 | ≥67 | ≤0.40 | ≥95 |
| 12/2.8/AA,Unit 1/2.7 | ≈74(AA) |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

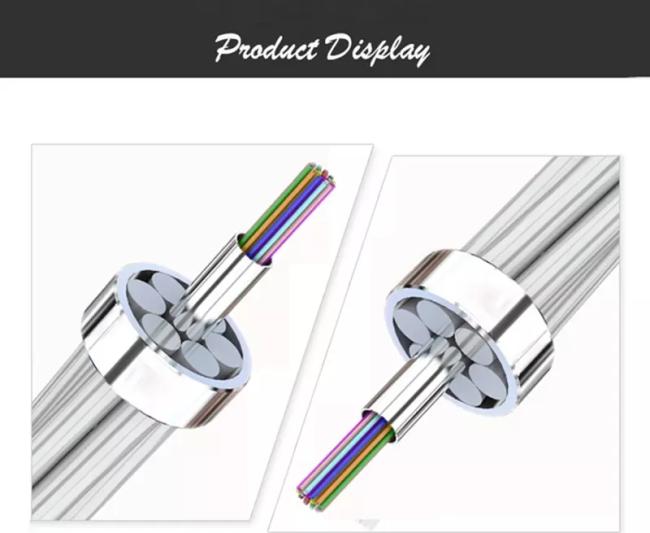

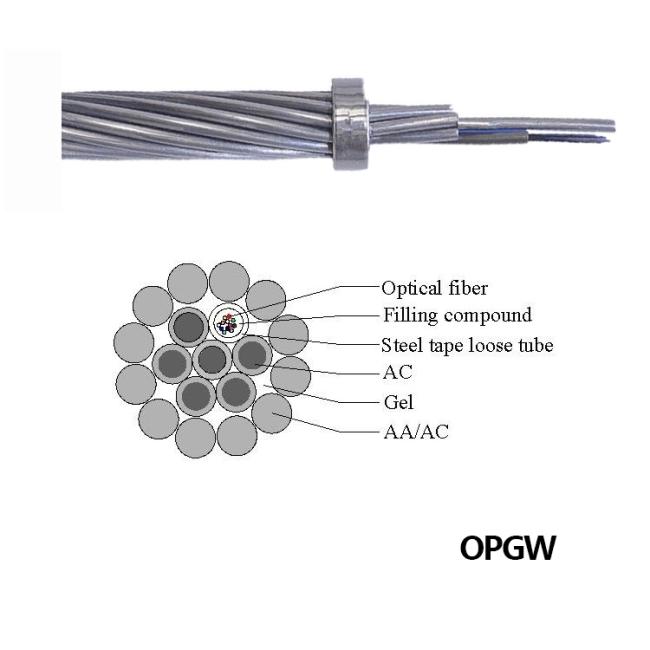

Structure and Product Pictures
