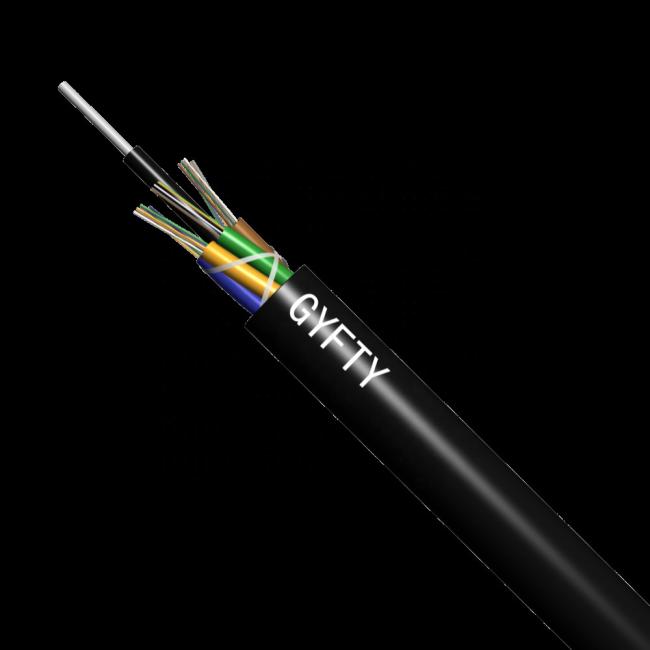

Stranded Non Armored 144 Core Loose Tube Fiber Optic Cable
GYFTY
Loose Tube Stranded Non-Armored 2-144 Core Outdoor Aerial & Duct Communication Fiber Optic Cable
Structure:

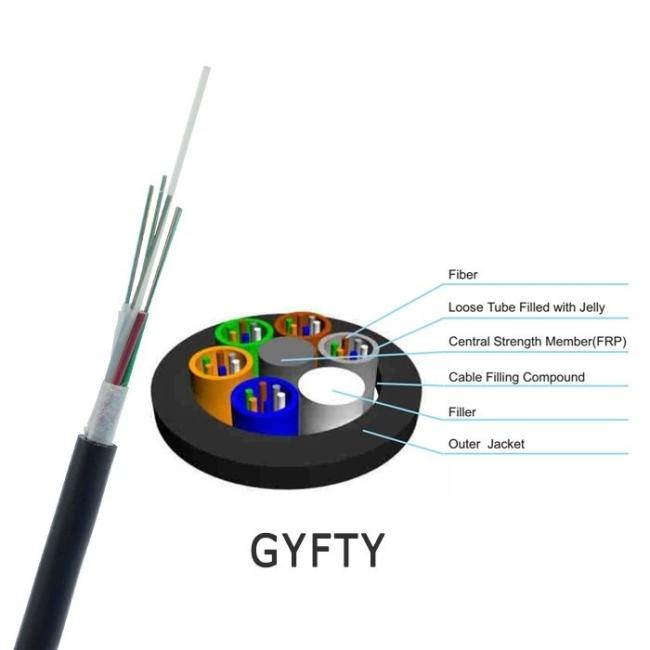

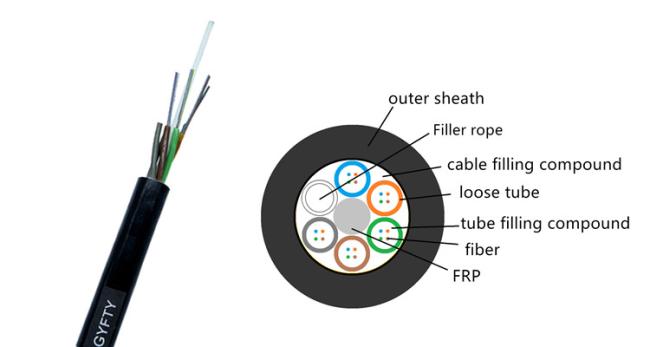

The structure of GYFTY optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound.
The center of the cable core is a glass fiber reinforced plastic (FRP). The loose tube (and filler rope) is twisted around the central reinforcing core to form a compact and round cable core. The gaps in the cable core are filled with water blocking fillers. A layer of polyethylene inner sheath is extruded outside the cable core to form a cable.
● Loose tube protects once coated optical fiber
● The loose tube is twisted around the reinforcement
● The reinforcement is in the center of the optical cable
Feature:
● Adopt "SZ" bidirectional layer twisting technology
● Filling water blocking ointment step by step, full section water blocking
● Steel (aluminum) belts have reliable bonding, high strength and no cracking when twisted
● Stable fiber length control
● After the cable is formed, the additional attenuation of the optical fiber is almost zero, and the dispersion value does not change
● Excellent environmental performance, applicable temperature range is -10 ℃ ~ + 70 ℃
Specification:
General Specifications
| Cable Type | GYFTY |
| Fiber Type | G652D |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Aerial |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
2.2 Fiber Specifications
| Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber | |||
| Optical Characteristics | |||
| Mode field diameter (MFD) |
1310nm 1550nm |
9.2±0.4 10.4±0.8 |
µm µm |
| Cut-off wavelength (λcc) | ≤1260 | nm | |
| Attenuation coefficient |
1310nm 1383nm 1550nm |
＜0.35 ＜0.35 ＜0.22 |
dB/km dB/km dB/km |
| Macro bending loss | φ75mm, 100circles, at 1550nm | ≤0.1 | dB |
| Attenuation non-uniformity | ≤0.05 | dB | |
| Dispersion coefficient |
1288~1339nm 1271~1360nm 1550nm |
≤3.5 ≤5.3 ≤18 |
Ps/(nm.km) Ps/(nm.km) Ps/(nm.km) |
| Zero dispersion wavelength | 1300~1324 | nm | |
| Max zero dispersion slope | ≤0.093 | Ps/(nm2.km) | |
| Group index of refraction (typical value) |
1310nm 1550nm |
1.466 1.467 |
|
| Geometric characteristic | |||
| Cladding diameter | 125.0±1.0 | µm | |
| Core/cladding concentricity error | ≤0.8 | µm | |
| Cladding non-circularity | ≤1.0 | % | |
| Coating diameter | 245.0±10 | µm | |
| Cladding/coating concentricity error | ≤12.0 | µm | |
| Coating non-circularity | ≤8 | % | |
| Diameter of colored coating | 250.0±15 | µm | |
| Mechanical characteristic | |||
| Curling (radius) | ≥4 | m | |
| Proof stress | ＞0.69 | Gpa | |
| Coating strip force |
Average value Peak value |
1.0-5.0 1.3-8.9 |
N N |
| Dynamic stress corrosion susceptibility parameter (nd value) | ≥20 | ||
Application:
Suitable for overhead, pipeline, direct buried and other laying methods
