36 Cores GYTA53 Outdoor Fiber Optic Cable Direct Buried Stranded Loose Tube Armored Cable
Outdoor fiber optic cable GYTA53 direct buried stranded loose tube armored cable
Description
250µm fibers are enclosed in a high modulus plastic tube, filled with water-resistant compound. A steel wire provides strength and is surrounded by the tubes, fillers, and an APL layer. The core is protected by a thin PE sheath, PSP, and a PE outer sheath.
Features
Steel wire strength filler protect tube fiber. Steel tape armord.
Good ultra violet radiation resistant property.
Double sheath and Double armored .
Good moisture resistance.
Specifications
| Cable Type | GYTA53 |
| Fiber Type | SM |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Direct buried |
| Environment | Outdoor |
| Temperature Range | -40℃ to 70℃ |
| Fiber Count | Nominal Diameter | Nominal Weight |
Max Fiber Per Tube |
Max No. of (Tubes+fillers) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| (mm) | (kg/km) | Short Term | Long Term | Short Term | Long Term | |||
| 4 | 9.5 | 80 | 4 | 1 | 3000 | 1000 | 3000 | 1000 |
| 12 | 9.5 | 80 | 6 | 2 | 3000 | 1000 | 3000 | 1000 |
| 24 | 9.5 | 80 | 6 | 4 | 3000 | 1000 | 3000 | 1000 |
| 96 | 14.6 | 220 | 12 | 8 | 3000 | 1000 | 3000 | 1000 |
| 288 | 21.6 | 310 | 12 | 24 | 3000 | 1000 | 3000 | 1000 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

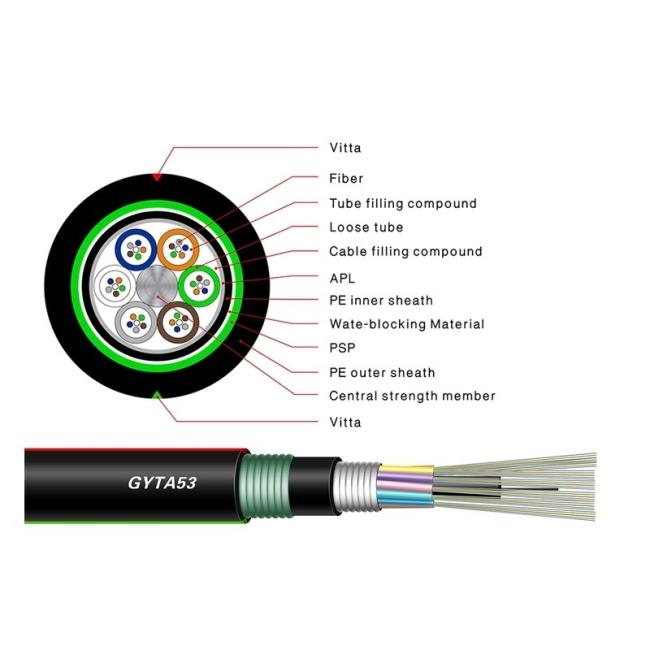

Structure and Product Pictures
Packing & Shipping & Payment
Cable supplied in specified lengths on separate drums with plastic caps sealing ends for water protection and easy testing. Final inspection report attached.
