Outdoor Fiber Optic Cable GYTA53 Direct Buried Stranded Loose Tube Armored Cable

1.  Description

The Underground Direct Buried Fiber Optic Cable GYTA53 are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.

• 250μm Coloured Fiber
• PBT loose Tube
• Tube Filling Compound(Gel)
• PSP corrugated steel tape armored
• PE Outer Sheath

2.Features

• Good mechanical and temperature performance
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Crush resistance and flexibility
• PE/LSZH sheath protects cable from ultraviolet radiation
• 100% cable core filling

3.Specifications

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

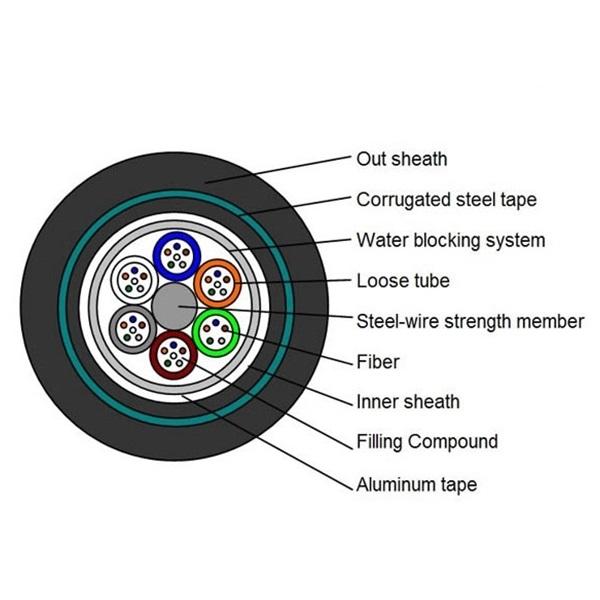

4. Structure and Product Pictures

5.Packing and Shipping
Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate iron-wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.

6.Our company

7. FAQ

Q1: Where is your factory ?
A1: Our factory is located in DONGGUAN City, GUANGDONG Province, China.

Q2: How long has your company been doing this?
A2: More than 20 years.We are not only produce fiber optical cable but also produce optical fiber and related tools .

Q3:How about the cable's quality?
A4: Our factory is approved by ISO9001 quality management system and including STARF,CE,CPR,TLC certifications at list.We have a series of equipment and instruments to make sure reliable quality of our products.

Q4: Can you produce cable as our requirements?
A6: Of course .We can supply different types of products according to your requirements with reasonable prices .

Q5:Do you accept the OEM order and how many is the MOQ?
A7:Yes,we warmly welcome your OEM order.To achieve customer's satisfaction,we accept sample order, even one Piece.
