Loose Tube Stranded GYTC8S Outdoor Fiber Optic Cable
Loose Tube Stranded Figure 8 Self-support Fiber Optic Cable Long Distance Communication GYTC8S Aerial Optical Cable
Description:
GYTC8S is a typical self supporting outdoor fiber optic cable with features of moisture resistance and crush resistance suitable for aerial application.
The metal strength member is made up of stranded wires, the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. The impact structure ensures excellent mechanical and environmental performance.
Both single mode type and multimode types are available. Various lengths and fiber number can be customized according to customers’ requirements.

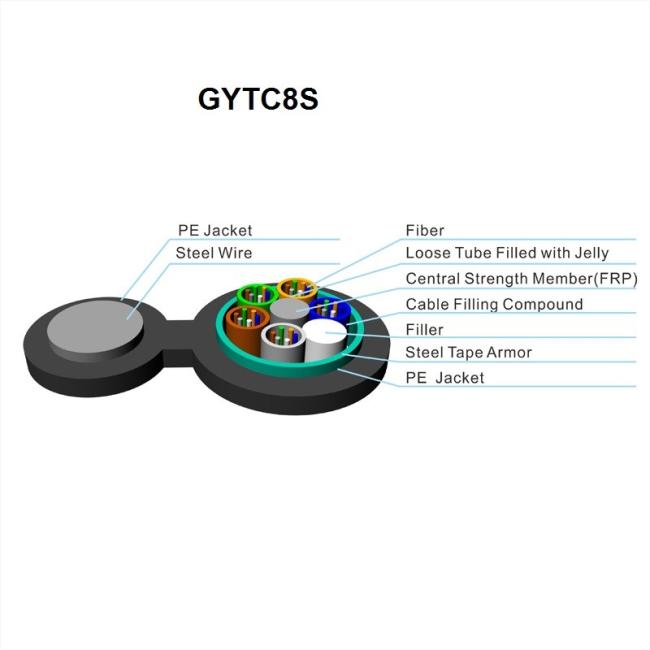

Structure:
- Self-supporting single steel wire,structure of figure 8
- Loose tube stranded, filling with compound
- Central strength member
- PE outer sheath
Feature:
- Loose tube gel-filled construction for superiorfiber protection.
- CST armor to protect cable from rodent attack and mechanical damage.
- UV and moisture-resistant design
Specification:
| Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter(mm) | Thickness of outer jacket(mm) | Cable diameter/Height(mm) | Cable Weight(kg/km) |
| 4 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 6 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 8 | 1+5 | 4 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 12 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 146 |
| 24 | 1+5 | 6 | 1.7±0.1 | 1.4/1.4 | 1.6±0.1 | 9.0 ±0.5/15.9 ±0.8 | 147 |
| 36 | 1+6 | 6 | 1.7±0.1 | 1.8/1.8 | 1.6±0.1 | 9.4 ±0.5/16.3 ±0.8 | 162 |
| 48 | 1+5 | 12 | 2.0±0.1 | 1.4/1.4 | 1.6±0.1 | 9.7 ±0.5/16.6 ±0.8 | 158 |
|
Item |
|
Parameters |
|
Loose tube |
Material |
PBT |
|
|
Color |
All colors display |
|
Filler |
Material |
PE |
|
|
Color |
Black |
|
CSM |
Material |
Phosphating steel wire |
|
Armoured |
Material |
Plastic coated steel strip |
|
Messenger wire |
Thickness |
1.1±0.1mm |
|
|
Diameter |
5.2±0.2mm |
|
|
Stranding steel wire |
1.0mm*7 |
|
Outer jacket |
Material |
MDPE |
|
|
Color |
|
|
Min. bending radius |
Static |
10 times cable diameter |
|
|
Dynamic |
20 times cable diameter |
|
Repeating bending |
Load:250N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. |
|
|
Tensile performance |
Short term |
|
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information.
Application:
- Inter-building voice or data communication backbones.
- Duct and Self-Supporting aerial
