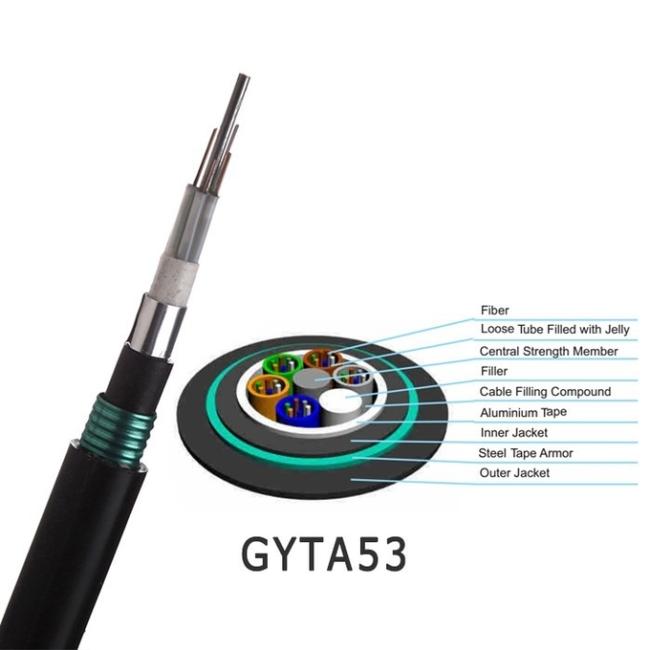

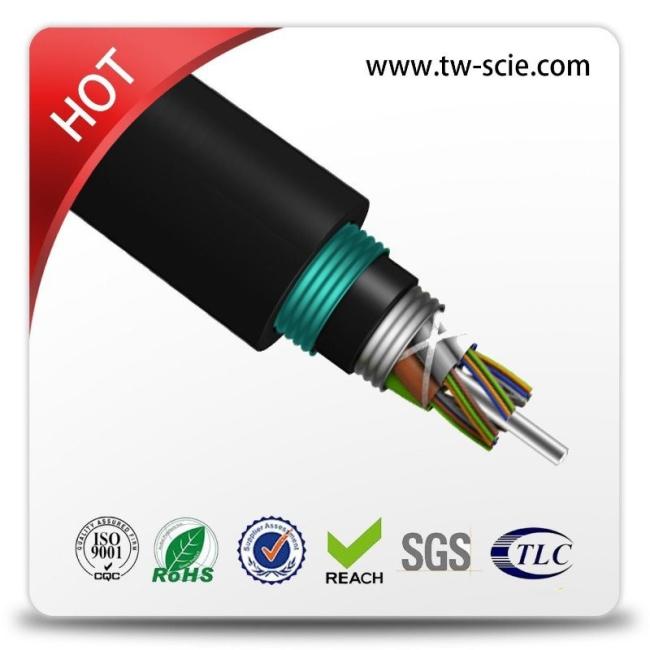

GYTA53 24 Core Double Armoured Double Sheath anti-UV PE jacket Fiber Optic Cable For Duct Burial
Double Armoured Aluminum Fiber Optic Cable for Duct Burial - 24 Core GYTA5
Application
Long-distance communication, LAN
Moisture-proof and rodent-proof
Specifications
| Cable Type | Direct burial optical fiber cable |
| Fiber Type | G652D, G657A1 |
| Application | Long-distance communication, LAN |
| Recommended installation methods | Direct Burial |
| Environment | Outdoor |
| Temperature Range | -40℃- 70℃ |
Fiber Standard Color
| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Slate | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
Cable Properties
| Item | Description | |
| Tensile strength(N) | Long-term | 1000 |
| Short-term | 3000 | |
| Crush(N/100mm) | Long-term | 1000 |
| Short-term | 3000 | |
| Min. Bend Radius | Static | 12.5D |
| Dynamic | 25D | |
| Temperature Range(℃) | Operation | -40℃ - +70℃ |
| Installation | -10℃ - +50℃ | |
| Storage | -40℃ - +70℃ | |
Cable Performance
| Item | Testing | Test Method | Test Result |
| 1 |
Tensile strength |
Tension load:3000N |
Loss change≤0.1dB@1550nm |
| 2 |
Impact |
Height: 1m |
Loss change≤0.1dB@1550nm |
| 3 |
Repeated Bending |
Bending diameter: 25X the cable outer diameter |
Loss change≤0.1dB@1550nm |
| 4 |
Torsion |
Torsion length: 1m |
Loss change≤0.1dB@1550nm |
| 5 |
Water Penetration |
Water height: 1m |
No water leaked from the opposite end of cable |
| 6 |
Temperature |
Temperature step:+20°C->-40°C°C >+70°C->+20°C |
Loss change≤0.1dB@1550nm |
| 7 |
Compound flow |
Sample length: 30cm |
No compound flow |
