40 FT Flatbed Trailer With Spring Suspension For Container Transport
Cheap 40 Tons 3 Axle Flatbed Semi-Trailer With Spring Suspension
Flatbed trailers are versatile open trailers used to transport a wide range of products and materials. Also known as flat, float, flat deck, and high boy trailers, some of the common products they are used to haul are: Flat steel, coiled steel, channel steel, Rebar, Lumber, Pipe, Pre-cast concrete, Building materials and container etc.
Feature
1. The flatbed trailers are suitable for the long distance transportation,have good adapt ability in cargo transport.
2. Main frame of flatbed trailer is made of 16mn high-tensile steel,the stucture is reasonable,have superior carrying capacity and no permanet deformation.
3. Use High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.
4. High strength and impact resistance new type suspension is adopted with patented rod connecting design. It can ensure better performance in rough road condition and keep longer service life.
Quality guarantee
1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.
2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment,ensure to meet your local road regulation.
Specification
| Style | 40FT 3 axle flatbed trailer |
| Dimension(L*W*H): | 12480*2500*1570 |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Payload(kgs): | 50000 |
| Tare weight(kgs): | 7500 |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” C200T |
| Tire size | 315/80R22.5 (13sets) |
| Rim size | 9.0*22.5 (13sets) |
| Axle | Fuwa brand 13ton |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Air Chamber | MBA T30/30 |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Suspension: | Fuwa steel suspension with 9pcs of leafs spring |
| Container locks | 12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |

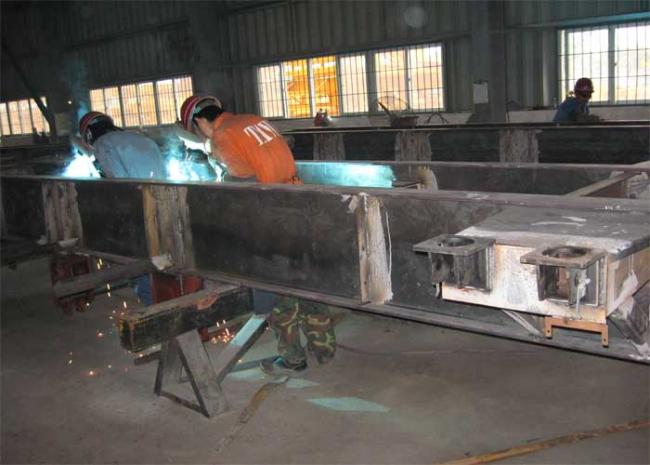

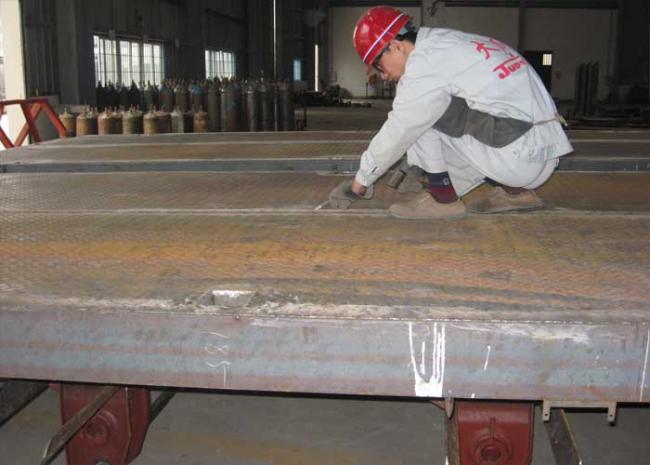

Production Photo
