Strong Tanker Body Fuel Storage Trailer 45000 Liters Capacity For Gasoline Transport
45000 Liters Fuel Tanker Trailer With Airbag Suspension For Gasoline Transport
I. Feature and advantages of 45000 liters fuel tanker trailer
1. The main frame and tank body of fuel tanker trailers are designed by 3D-CAD, have a more reasonable structure.
2. The fuel tanker trailers are made of high-tensile Q345B steel, 5 mm thickness for dish, 6 mm thickness for shell, the tanker body is stronger.
3. Safe tanker facilities,manhole cover with P/V vent valves and safety valves, can be in carbon steel, aluminum and stainless steel materials.
4. Optional for a bottom loading fuel tanker trailer, Can install the API Adaptor Valves, Anti-overfill and vapor recovery system as your request.
II. Quality guarantee of 3 axle fuel tanker trailer
1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.
2. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment,ensure to meet your local road regulation.
III. Specification
| Style | 45,000L 3 Axle Fuel Tank Trailer |
| The thickness of shell&dish | 5mm/ Q345B carbon mild steel |
| Compartment: | 3 |
| Dimension(L*W*H)mm: | 12300*2460*3600 |
| Payload(kgs): | 45000 |
| Tare weight(kgs): | 10000 |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” C200T |
| Tire size | 385/65R22.5 (7sets) |
| Rim size | 11.75*22.5 (7sets) |
| Axle | Fuwa brand-13ton |
| Leafs spring | Airbag suspension |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Manhole: | Europe Standard C801A-560Φ500 |
| Discharge and bottom valve | Pneumatic 3” |
| Prime & Topcoat painting | Zinc-rich & Polyurethane painting |

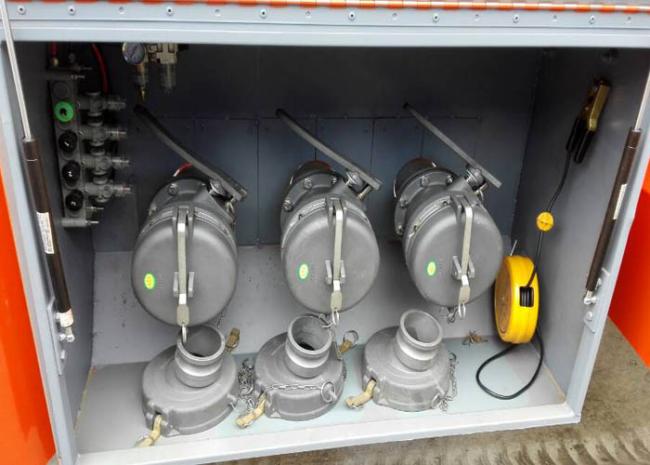

IV. Detailed Photo of fuel tanker trailer with airbag suspension
