Grain Trailer Van Closed Box Trailer With Side Tipping For Wheat Transport
Grain Trailer Van Closed Box Trailer With Side Tipping For Wheat Transport
Built to carry 60tons of grain, this HOWO Steel Grain Tipper is made with high tensile Q345B carbon steel with a heavy-duty to lift massive amounts of grain. This type of grain trailer is special design for middle east africa countries like Kuwait, Saudi Arabia,Yemen etc.
Quality guarantee for the grain van trailer
1. Two years free warranty terms for the I beam, Three to Six month to the spare parts like Axle,Suspension etc.
2. Tool and same easily broken parts will deliver to you with trailers
3. Spart parts support service
4. We can design and produce the trailers as clients's drawing and requirements.
Specification of Closed Box Grain Trailer
| Style | Grain Side Tipper Trailer |
| Dimension(L*W*H): | 13500*2600*2200 |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Payload(kgs): | 60000 |
| Tare weight(kgs): | 7500 |
| Kingpin | 3.5” bolt-in |
| Landing gear | 19” |
| Tire size | 315/80R22.5 (12 sets) |
| Rim size | 9.0*22.5 (12 sets) |
| Axle | 16 Tons, 3 Axle |
| Brake system | d Re-6 emergency relay valve, 46L air tank |
| Air Chamber | MBA T30/30 |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Suspension: | Spring suspension with 10 pcs of leafs spring |
| Painting: | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
| Hydraulic system | Chinese brand, side tipping |

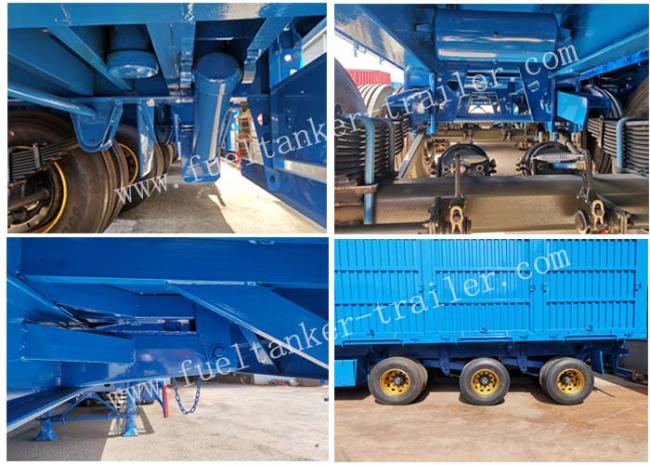

Details Photo of Grain tipping trailer
