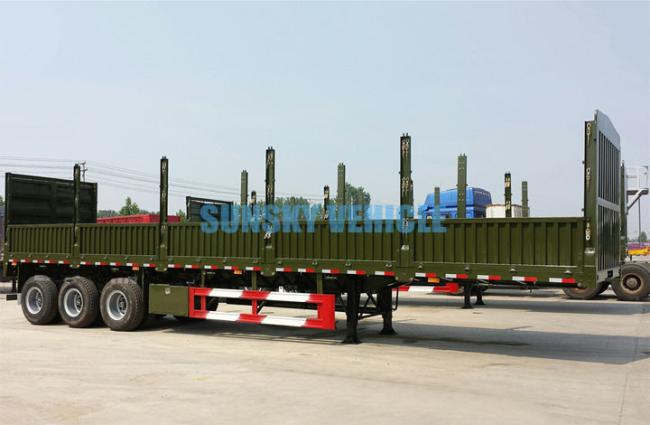

3 Axle Fence Side Wall Flatbed Trailer With Spring Suspension
Flatbed trailers with drop side are versatile open trailers used to transport flat, float, flat deck,.etc, It can be installed warehouse grid as fence trailer or warehouse trailer, which is mainly used for special cargo transportation bulk cargo.
SUNSKY fence flatbed trailer choose Q345B carbon high-tensile steel material, welded by automatic submerged-Arc processes. We adopt world famous brand of parts, like JOST, WABCO braking valve etc. This makes the trailer not only increase long service life but also improve operating efficiency and save maintenance costs. Fence cargo semi trailer has a fence structure design.
Specification
| Dimension(L*W*H): | 12600*2480*3700 mm |
| Loading capacity: | 30-100 T |
| The Height of Wall: | 2000mm (as your requirement) |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| No. of axle: | 3 |
| Payload(kgs): | 40000 |
| Tare weight(kgs): | 9500 |
| Landing gear: | JOST19” |
| Tire size: | 315/80R22.5 |
| Rim size: | 9.00*22.5 |
| Axle: | BPW Brand |
| Suspension: | Germany type steel suspension with 9pcs of leafs spring |
| Leaf Spring: | 90(width)mm*13(thickness)mm*10 layer(especial for exporting market) |
| King pin: | Jost brand 2.0 or 3.5 inch |
| Brake system: | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Container locks | 4/8/12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: | S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
| Accessory: | One tool box; one set of standard tool |
Advantage
1. The main frame of trailer is made of 16Mn high-tensile steel,reasonable structure,light weight,superior carrying capacity and no permanent deformation
2. The new suspension system is adopted, which has high strength and strong impact resistance; each axis is balanced, and the angle of the system lever is reasonably designed.
3. During the bumpy operation, the friction and slip distance between the tire and the ground is reduced, which effectively reduces Tire wear, at the same time adjustable tie rods, can adjust the wheelbase, effectively avoid the phenomenon of tires running into the wheel.
Quality guarantee
1. More than 30 years experiences in trailer and truck industrial, exported to more than 30 countries in Africa, Southeast Asia.
2. Twenty-Four month free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirement, ensure to meet your local road regulation.
