industrial Water Immersion Test Equipment Waterproof Ipx7 Ipx8 Test Chamber

Price Negotiable
Price: USD3000 ~ USD15000 / SET
MOQ: 1 Set
Delivery Time: 18 days ( check if have stock)
Brand: LIB
Product Description

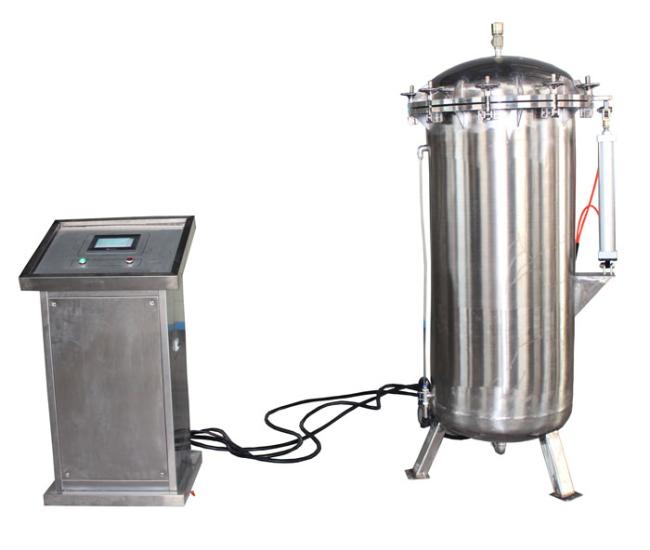

Immersion Cylinder Immersion Tank Waterproofipx7 Ipx8 Test Chamber, Water Immersion Test Equipment



Immersion Cylinder Immersion Tank Waterproofipx7 Ipx8 Test Chamber is used to perform the tests for testing the degree of protection provided by a product enclosure. The level of protection against water ingress is represented by an IP code. All LIB test chambers fully complies with IEC 60529 (IP Code standard) ,ISO20653and other international standards.



Our water ingress chambers have capabilities for IP testing included:

IPXX7/X8 (immersion test)





Products Parameters

Useful volume: Diameter 600mm *Height 1500mm.
Material A3 steel plate, wall thickness 15mm;
Pressure Can simulate 50m water depth pressure ( MAX:5KG/M3)
Water supply Automatic water supply
Controller Color display touch screen controller
Open mode pneumatic lift with safety lock.
Nominal power 3500W
Power Supply AC380V 50HZ

Standards:

IEC 60529

ISO 20653



Packages

  • Export Standard Wooden Box
  • Can be used for Sea, Air, Railway, Truck transportation
  • Package size: 3.4m³, gross weight: 410kgs
