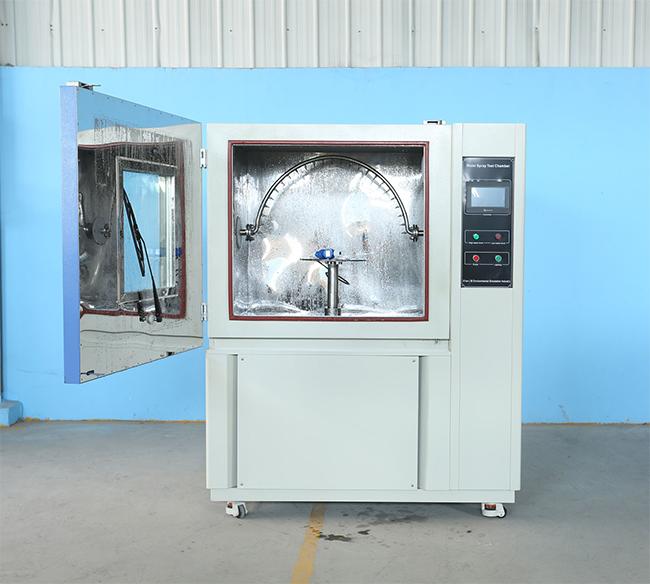

Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment
►Applicaton for Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment
Waterproof Ipx2 Rain Splash Water Test Chamber Water Spray Test Equipment simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic.
►Theory for Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment
Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipmentuses the scientific design makes the device capable of realistic simulation drip, water spray, splashing water, environmental, water and so on. Into the overall control system and the use of inverter technology, making the rotation angle of rainfall in the test frame, spray angle and swing the pendulum swinging spray volume can automatically adjust the frequency.
► Chacteristics for Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment
1. Capacity of 729 liters and 2700 liters, standard and cu
2. Protection against drip, spraying and splashing water
3. Control and adjust water flow
4. Eliminates water consumption by circulation unit
5. Waterproof power connector in the test room
6. Automatic water supply
7. Programmable color display touch screen controller
8. USB and Ethernet
9. A viewing window with wiper
10. Internal illumination in test room
11. Safety protection system
12. CE mark
► Main Parameter for Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment
|
Name |
IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment |
|
|
Model |
R-800C |
R-1200C |
|
Internal Dimensions (mm) |
900*900*900 |
1400*1400*1400 |
|
Overall Dimensions (mm) |
1120*1460*1660 |
1600*1950*2100 |
|
Interior Volume (L) |
720 |
2740 |
|
Drip tray size (mm) |
600*600 |
900*900 |
|
Spraying Hole Diameter |
φ0.4mm |
|
|
Hole Spacing |
50 mm |
|
|
Swing Angle of Oscillating Tube |
0 ~ ±180° (Adjustable) |
|
|
Turntable Rotation Speed |
1r/min (Adjustable) |
|
|
Oscillating Tube Radius |
400mm |
600mm |
|
Water Pressure Control |
Flow meter |
|
|
Controller |
Programmable color LCD touch screen controller Ethernet connection, PC Link, USB |
|
|
Build-in Water Tank(mm) |
370*375*950 |
|
|
View Window Size(mm) |
475*475 |
|
|
Water supply system |
Water tank, booster pump, Automatic water supply, Water purification system |
|
|
Observation Window |
Double layer insulating glass with wiper |
|
|
Power Supply |
380V 50Hz |
|
|
Standard |
IEC 60529, ISO20653 |
|
►Main Detailsfor Waterproof IPX2 Rain Splash Water Test Chamber Water Spray Test Equipment
 |
 |
|

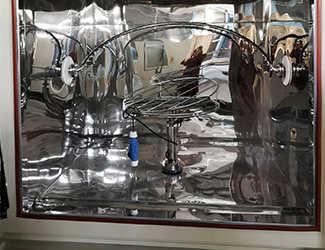

1.Workroom The internal material is 304 stainless steel, mirror surface, rust-proof, high temperature and corrosion resistance; Nice ruggedness and long life. The workroom is equipped with a single-phase 16A internal power interface to power up the test specimen. The power-on time and cycle can be controlled by the controller. |
2.Viewing Window Double-layer tempered glass, specially designed seal, with good impact resistance and prevention of water leakage. Equipped with manual water wiper for easy observation samples |
 |
 |
|

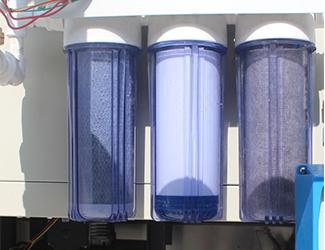

3.Water filtration system
|

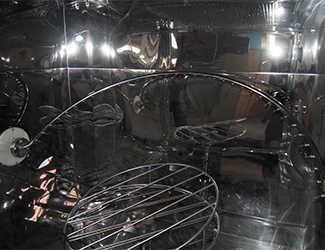

4.Turntable The turntable is made of 304 stainless steel, the speed and angle can be adjusted Sample should be firmly fixed on the turntable. |
