Programmable No Housing IPX1 IPX2 Water Spray Test Equipment
■ Description of IPX1 IPX2 Testing Equipment
Programmable no housing IPX1 IPX2 testing equipment applied to test the shell’s waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.
■ Test Standards of IPX1 IPX2 Testing Equipment
Programmable no housing IPX1 IPX2 testing equipment is designed according to the relevant standard requirements of IEC60529:2001 Degrees of protection provided by enclosures (IP Code).
■ Technical Specification of IPX1 IPX2 Testing Equipment
| Name | Programmable No Housing IPX1 IPX2 Testing Equipment |
| Model | RNH-12 |
| Internal Dimensions (mm) | 1400(D)*1400(W) |
| Overall Dimensions (mm) | 1600(D)*1600(W)*2500(H) |
| Oscillating Tube Radius | Drtip tray type |
| Spraying Hole Diameter | φ0.4mm |
| Hole Spacing | 20 mm |
| Turntable Rotation Speed | 1r/min Adjustable |
| Controller | Programmable color display touch screen controller, Ethernet, USB(Option) |
| Water Pressure Control | 1+/-0.5mm/min for IPX1; 3+/-0.5mm/min for IPX2 |
| Observation Window | No Housing |
| Water Supply System | Booster pump, Water purification system |
| Interior Material | SUS304 stainless steel |
| Power | AC380V |
■ More Details of IPX1 IPX2 Testing Equipment
 |
|
|
Sample Rack
|
Controller
|
 |
|

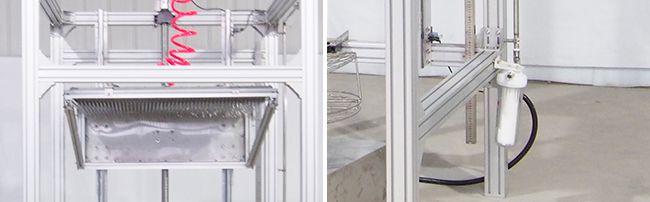

| Drip Tray Adjustable drip tray to meet IPX1 and IPX2 testing requirements |
Water Filtration System
|
■ Features of IPX1 IPX2 Testing Equipment
1. Suitable for IPX1, IPX2 test.
2. No housing structure, drip tray running smoothly.
3. Equipment rack, sample turntable all made of high quality aluminum and SUS304 stainless steel plates, to ensure that long-term use does not rust.
4. Water Tank Lifting drive: Screw (SUS303 stainless steel), nut means driving movements, have fall protection and other security features.
5. A drop of rain board: vacuum design, using high rustproof stainless steel manufacturing, durable.
6. Drop of rain flow: flow meter comes with control valve, manual adjustment.
7. Rainfall device can automatically lift,
8. Test needle: 0.4mm diameter, fully in line with the test standard; detachable type, easy to replace.
9. Filtering measures: the device with a high accuracy of the filter, can effectively filter the impurities in the water, the filter can be replaced regularly.
