Oscillating Tube IEC60529 IPX3 IPX4 Rain Spray Test Chamber
■ Description of Rainfall Test Lab Equipment
Oscillating tube IEC60529 IPX3 IPX4 rainfall test lab equipment is applicable to the enclosure protection grade assessment of electronic appliances and products. It is aiming to test the waterproof performance of enclosures by testing the harmful effect to the appliance when water into the enclosure.
for checking the protection against ingress of water to verify the degrees of protection IPX3"Protection against spraying water" and IPX4 "Protection against splashing water"
■ Technical Specification of Rainfall Test Lab Equipment
| Name | Oscillating Tube IEC60529 IPX3 IPX4 Rainfall Test Lab Equipment |
| Model | RNH-34 |
| Internal Dimensions (mm) | According to size of IPX3X4 oscillating tube |
| Overall Dimensions (mm) | Uncertain |
| Oscillating Tube Radius | 200mm, 400mm, 600mm, 800mm, 1000mm, 1200mm, 1400mm, 1600mm |
| Swing Angle of Oscillating Tube | 0 to ±180° Adjustable |
| Spraying Hole Diameter | φ0.4mm |
| Hole Spacing | 50 mm |
| Turntable Rotation Speed | 1r/min Adjustable |
| Controller | Programmable color display touch screen controller, Ethernet, USB(Option) |
| Water Pressure Control | Flow meter |
| Observation Window | No Housing |
| Water Supply System | Storage water tank, Booster pump, Automatic water supply, Water purification system |
| Interior Material | SUS304 stainless steel |
| Power | AC380V |
■ More Details of Rainfall Test Lab Equipment
 |
|
|

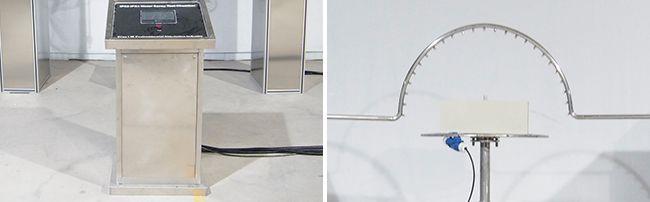

Controller Components PLC and touch screen intelligent control system
|

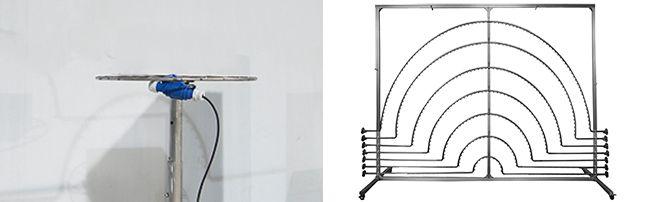

Oscillating Tube
|
 |
|
|
Turntable
Turntable Speed 1-5r/min (Adjustable) Equipped with waterproof power supply |
Customize and Optional
|
■ Standards compliant
IEC 60529-2013 “Degrees of protection provided by enclosure (IP code)” IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 and IPX7
IEC 60598-1-2017 “Luminaries-Part1: General requirements and tests”

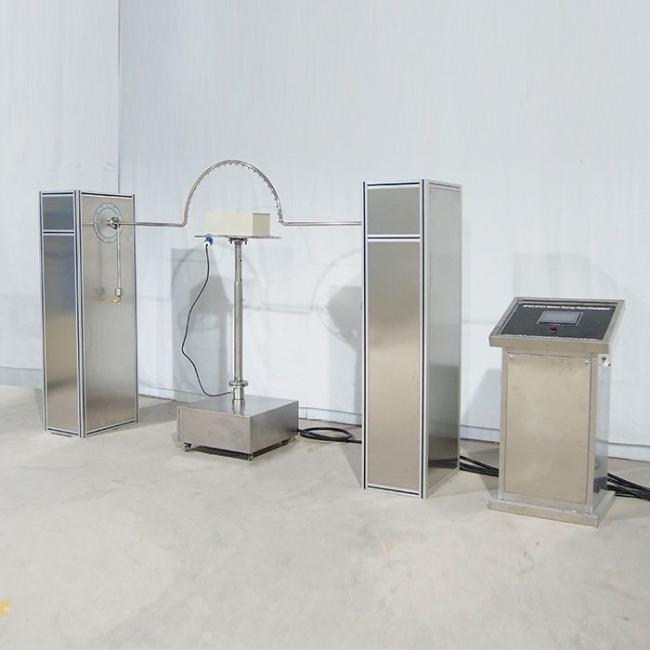

■ No Housing Rainfall Test Lab Equipment
