200mm 280nm Weathering Aging Xenon Test Apparatus
Description of Xenon Test Apparatus
Many polymer materials are often be damage by natural environmental factors which from Earths surface and atmosphere when it used outdoor. Thus affect their useful life. Inorder to properly assess their useful life in the outdoors, using the 200mm 280nm weathering aging xenon test apparatus to simulation of each kinds of natural climatic conditions ,study weather resistance of each kinds of products in the laboratory has becomea widely and effective method.
Parameters of Xenon Test Apparatus
|
Name |
200mm 280nm Weathering Aging Xenon Test Apparatus |
|
Model |
XL-500 |
|
Internal dimensions D*W*H |
500*600*700 mm |
|
Overall dimensions D*W*H |
1200*1150*1700 mm |
|
Irradiation Source |
1 piece of 1500 W air cooled xenon lamp with inner quartz and outer borosilicate filter |
|
Irradiance Range |
100~1200 W/㎡ |
|
Bandwidth Measurement |
280nm~800nm |
|
Chamber Temperature Range |
Ambient ~100℃±2°C |
|
Black Panel Temperature |
BPT 35 ~85℃±2°C |
|
Relative Humidity Range |
50~98% R.H±5% RH |
|
Water Spray cycle |
1～9999H59M, adjustable |
|
Controller |
programmable color display touch screen controller, PC Link, R-232 interface |
|
Radiometer |
Tolerance: ±5% |
|
Heating system |
Nichrome heater |
|
Cooling system |
Mechanical compression refrigeration system |
|
Refrigerating unit |
French TECUMSEH compressor |
|
Humidification system |
External isolation, stainless steel surface evaporation humidifier |
|
Air circulation |
Centrifugal wind fan |
|
Water supply system |
Automatic water supply; Water purification system |
|
Interior material |
SUS304 stainless steel |
|
Exterior material |
Steel Plate with protective coating |
|
Thermal insulation |
Polyurethane foam |
|
Observation window |
Interior lighting , double-layer thermo stability silicone rubber sealing |
|
Power Supply |
AC380V 50HZ |

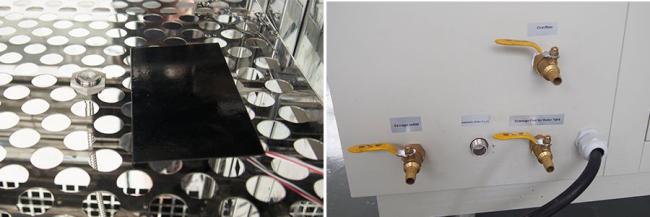

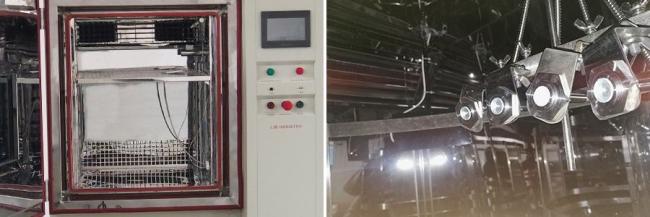

Details of Xenon Test Apparatus
 |
|
|
Black Panel Thermometer |
Automatic intake |
 |
|
|
Workroom |
Radiometer |
Main Technical Parameters
1.Xenon Lamp:1500W air cooled Xenon lamp
2.Lamp Lifetime: Near 1600hours
3.Exposure Area:The sample rack can be adjusted and disassembled to place different sizes of test pieces
4.AdjustableIrradiance Range:100~1200W/m2
5.AdjustableBlack Board Temperature Range:RT+35℃～85℃
6.Interior Material of Chamber:Stainless steel -SUS 304 material
7.Exterior Materialof Chamber:A3 Stainless steel and coating
8.Power Supply:380V 50HZ
Applications of Xenon Test Apparatus
1. Xenon accelerated weathering apparatus using a xenon arc lamp to simulate the whole spectrum of sunlight reproduction under different environments of the destructive wave:
2. Xenon test apparatus provides environmental simulation and acceleration tests for scientific research, product development, and quality control.
3. Xenon accelerated weathering test apparatus can be used for the selection of new materials, improvement of existing materials, or assessment of changes in durability of materials after changes in composition.
4. Can well simulate changes in materials exposed to sunlight under different environmental conditions
