Description

ISO 20653 85 ℃ Water Jet Battery IPX9K Test Equipment,Natural water (rain water, sea water, river water, etc.) damages products and materials, causing incalculable economic losses every year. The damage caused mainly includes corrosion, fading, deformation, strength decrease, swelling, mold, etc., especially electrical products are easy to cause fires due to short circuits caused by rain. Therefore, it is an indispensable key procedure to carry out the shell protection water test for the car battery.

Technical Specification

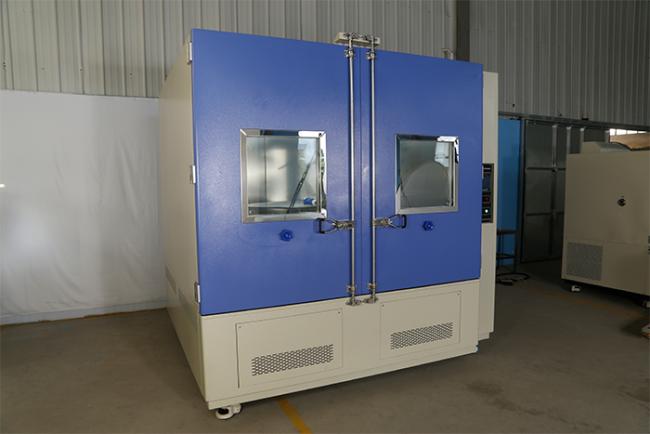

Battery temperature IPX9K mahine designed for waterproof test for auto parts,electrical and electronics,simulation natural environment and human factor.We have different models for different standard worldwide.   ISO 20653 85 ℃ Water Jet Battery IPX9K Test Equipment

IPX9K Standard

ISO 20653 85 ℃ Water Jet Battery IPX9K Test Equipment

1. ISO16750-1-2006 Environmental conditions and tests for road vehicles, electrical and electronic equipment (general regulations);

2. ISO20653 road vehicles-protection class (IP code)-protection of electrical equipment against foreign objects, water and contact;

3. IEC60529 electrical enclosure protection classification (IP) code;

Standard Parameter

ISO 20653 85 ℃ Water Jet Battery IPX9K Test Equipment

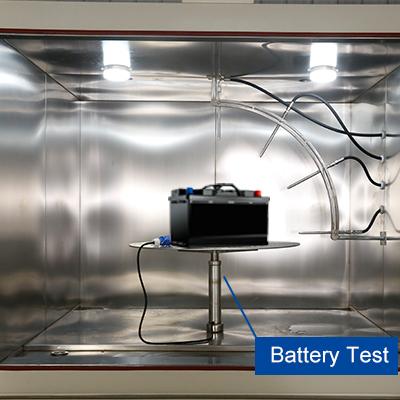

1. Number of ipx9k nozzles: 4;

2. ipx9k nozzle angle: 0°, 30°, 60°, 90° (vertical direction);

3. ipx9k nozzle distance: 100-200mm (can be adjusted manually);

4. The diameter of the ipx9k sample turntable: 400mm;

5. Manual adjustment of ipx9k turntable lifting method;

6. The adjustment range of the ipx9k turntable: 250-450mm (the distance between the table and the bottom);

7. Ipx9k water spray flow rate: 14~16L/min;

8. Ipx9k water spray temperature. Normal temperature: (25℃), 80±5℃ (the deviation temperature can be negotiated)

9. Water spray pressure of ipx9k: 8000~10000 Kpa;
