IEC62688 85℃ 85%RH Temperature Humidity Chamber PV Panel Humidity Freeze Test
Description
IEC62688 85℃ 85%RH PV Panel Humidity Freeze Test Device,The chamber's damp heat test is performed according to IEC 61215 and IEC 61646 standards. With this test, the PV module's ability to withstand the effect of long-term penetration of humidity can be accurately determined. PV modules are subjected to temperatures upwards of 85°C and relative humidity of 85% for 1,000h in the climatic chamber.
Technical Specification
| Name | IEC62688 85℃ 85%RH PV Panel Humidity Freeze Test Device |
| Model | PV-04 |
|
Internal Dimension (mm) |
1300*700*1350 |
|
Overall Dimension (mm) |
1900*1100*1750 |
|
Interior Volume |
1220L |
|
Temperature Range |
-60℃ ～ +100 ℃ |
|
Temperature Fluctuation |
± 0.5 ℃ |
|
Temperature Deviation |
± 2.0 ℃ |
|
Humidity Range |
20% ~ 98% RH |
|
Humidity Deviation |
± 2.5% RH |
|
Temperature Change Rate |
1 ~ 3.4℃ / Min |
|
Panel Size |
1M*2M |
|
Panel Capacity |
4 / 6 / 8 / 10 / 12 Pieces |
|
Cooling system |
Mechanical compression refrigeration system |
|
Refrigerating unit |
French TECUMSEH compressor |
|
Refrigerant |
R404A, R23 |
|
Heating Element |
Nichrome heater |
|
Controller |
Programmable color LCD touch screen controller,Ethernet connection, PC Link, USB |
|
Exterior Material |
Steel Plate with protective coating |
|
Interior Material |
SUS304 Stainless steel |
|
Thermal Insulation |
Polyurethane foam and insulation cotton |
|
Maximum Noise |
65 dBA |
|
Environmental Conditional |
5℃～+35 ℃ ≤85% RH |
|
Standard |
IEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345 |
 |
Environmental Test Chambers for Solar Panels |
Test Device

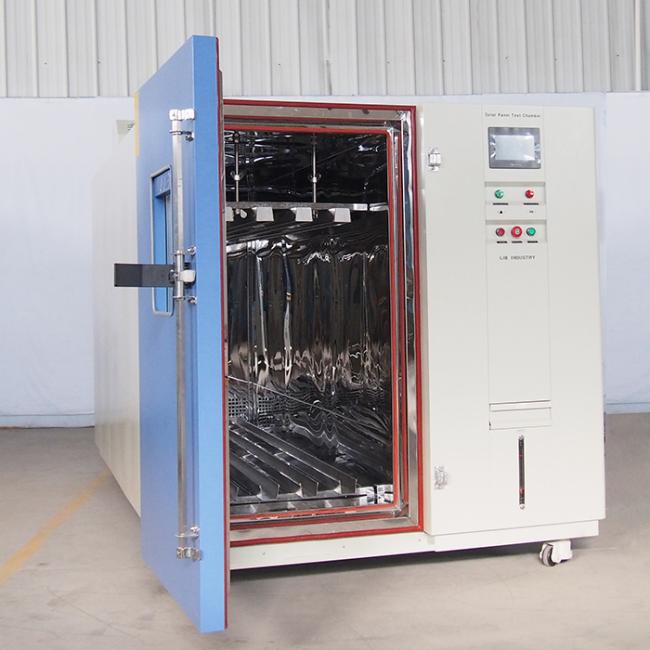

IEC62688 85℃ 85%RH PV Panel Humidity Freeze Test Device

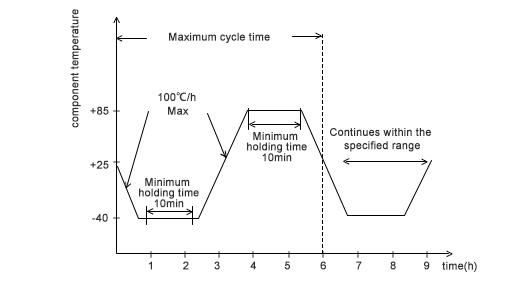

A) A PV climate chamber with automatic control of temperature and humidity, can hold one or more components, as shown in figure 12.
B) A device of supporting components is installed in the climate chamber, and to ensure that the air around can freely cycle, heat transfer installation or device should be small, in fact, components should be insulated.
C) A instrument to measure and record the component temperature with accuracy of ±1 ℃. If multiple components test at the same time, only need to monitor one representative component temperature.
D) In the whole test process, instrument to monitor each component internal continuity.
Test Procedure
IEC62688 85℃ 85%RH PV Panel Humidity Freeze Test Device
After the test, the PV modules are analyzed, and those with a damaged PV cell reveal which will experience significantly decreased power in certain environmental conditions. Through the damp heat test, the chamber can prove the reduction of durability resistance of PV modules to the long-term effect of humidity
