IEC60529 Waterproof Testing Machine Lab 800L IPX1 IPX2 Drip
IEC60529 Lab 800L IPX1 IPX2 Drip Waterproof Testing Machine
Description
IEC60529 Lab 800L IPX1 IPX2 Drip Waterproof Testing Machine applied to test the shell’s waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.
Main Technical Parameter
| Name | IEC60529 Lab 800L IPX1 IPX2 Drip Waterproof Testing Machine |
| Model | R-800 |
| Internal dimensions (mm) | 800*800*800 |
| Overall dimensions (mm) | 1020*1360*1560 |
| Oscillating tube radius | 400mm |
| Spraying hole diameter | φ0.4mm |
| Hole spacing | 50 mm |
| Oscillating tube range | ±45°, ±60°, ±90°, ±180°(theoretical value) |
| Turntable rotation speed | 1r/min, or steeples speed regulating (optional) |
| Controller | Programmable color display touch screen controller, PC Link with software, R-232 interface |
| Water pressure control | Flow meter |
| Observation window | Large viewing window with wiper |
| Water supply system | Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving |
| Safety protection device | Electric leakage, short circuit, motor overheating, over-current protection |
| Exterior material | Steel Plate with protective coating |
| Interior material | SUS304 stainless steel |
| Power | AC380V 50HZ |
| Standard | IEC 60529 |
Detail Design
 | |

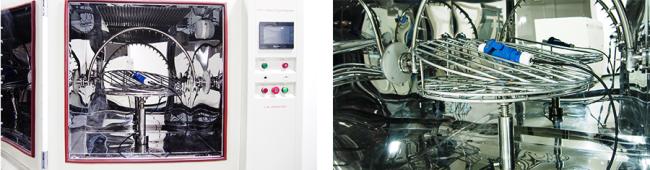

| Stainless steel test area | Adjustable turntable |
IPX1 IPX2 Drip Waterproof Testing Machine meet IEC60529 test requirements,LIB INDUSTRY provide standard rain chamber and custom made rain equipment.
Features
IPX1 IPX2 Drip Waterproof Testing Machine
1.S304 stainless steel water box and test chamber;
2.Box-type structure, water recycling;
3. Observation window: making use of tempered glass, durable;
4.A drop of rain flow: Frequency adjustable, adjusted manually;
5.Test nozzle: Stainless steel nozzle orifices can be replaced at any time according to requirements of the standard aperture.
6.Filter Action: Device standard filter to prevent clogging of the pinhole; the filter can be replaced periodically;
Application
IPX1 IPX2 Drip Waterproof Testing Machine applied to test the shell’s waterproof effect of electronics, automobile and communication, using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.
